ACR ELECTRONICS RCL-100D 12v Searchlight, 200,000 cda
Mounts
SearchLights,Lamps
HRMK1201
HRMK1201 Window Gasket
HRMK1201 Window Gasket
No Longer Available
HRMK1204
HRMK1204 Base Gasket - U-Type
HRMK1204 Base Gasket - U-Type
No Longer Available
HRMK1300
HRMK1300 Front Glass
HRMK1300 Front Glass
No Longer Available
HRMK1301
HRMK1301 Reflector - 10cm
HRMK1301 Reflector - 10cm
No Longer Available
HRMK1304
HRMK1304 Socket Assembly 21-T
HRMK1304 Socket Assembly 21-T
No Longer Available
HRMK1503
HRMK1503 Planet Gear
HRMK1503 Planet Gear
No Longer Available
HRMK1504
HRMK1504 Slip Ring - PP-9A
HRMK1504 Slip Ring - PP-9A
No Longer Available
HRMK2200
HRMK2200 Front Frame Gasket f/RCL-100
HRMK2200 Front Frame Gasket f/RCL-100
No Longer Available
HRMK2202
HRMK2202 O-Ring - S94
HRMK2202 O-Ring - S94
No Longer Available
HRMK2300
HRMK2300 Brush Holder Assembly
HRMK2300 Brush Holder Assembly
No Longer Available
HRMK2502
HRMK2502 Thrust Slide Ring
HRMK2502 Thrust Slide Ring
No Longer Available
HRMK2503
HRMK2503 Radial Slide Ring
HRMK2503 Radial Slide Ring
No Longer Available
HRMK2504
HRMK2504 Thrust Set Ring
HRMK2504 Thrust Set Ring
No Longer Available
HRMK4200
HRMK4200 Elevation Motor and Gear
HRMK4200 Elevation Motor and Gear
No Longer Available
HRMK4300
HRMK4300 Turning Motor and Gear
HRMK4300 Turning Motor and Gear
No Longer Available
Other
Also available
Contents of the package
RCL-100 Searchlight, 12 Volt
Point pad
Wiring harness 15 ft
Installation hardware
Owner s manual
Point pad
Wiring harness 15 ft
Installation hardware
Owner s manual
Features
RCL-100D Searchlight, MFG 1930.3, Includes URP-102 control pad and 15 ft. wire harness. 12 VDC, Dual bulb, 200,000 candela, will accept up to 3 remotes.RCL-100D Remote Controlled Searchlight - 12V
200,000 candela
Internal, elevation mechanism, provides pitch control of spotlight beam; protects elevation mechanism from weather
Includes a fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
Rugged triple-primed and sealed, marine grade aluminum housing
Wiring harness 15' (4.57 m) length
Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
Application: Sport yachts, mega-yachts, sport fish and commercial vessels
Specifications
Bulb Watts 55WCandle Power 200,000
Voltage - Input Range (Volts) 12V
Wireless NO
Box Dimensions 12"H x 14"W x 15"L
Material: Rugged triple-primed and sealed, marine grade aluminum housing
Color: White
Operation: Remote controlled
Accessories:

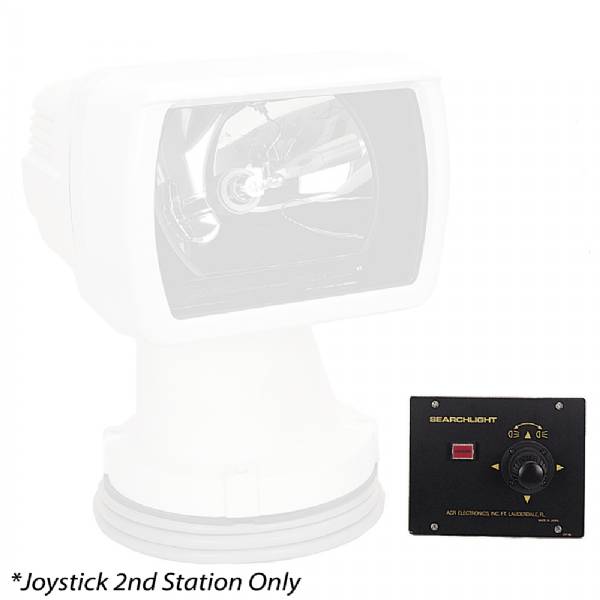

Universal Remote Control Point Pad for remote control with install kit - P/N 9283.3
55W/12V Halogen lamp - P/N 6001
55W/24V Halogen lamp - P/N 6003
12V searchlight only - P/N 1925
24V searchlight only - P/N 1926
Beam Angle: 5° vertical, 7° horizontal
Elevation Angle: 9° up, 17° down
Rotation: 360°
Rotation Speed: Fast 28° per second, Slow 18° per second
Elevation Speed: 2°-7° per second - (12VDC) 5°-8° per second - (24VDC)
Lamp: High intensity 55W Halogen
Limited Warranty: 1 year
Item number: 1930.3
UPC: 791659193037
Package weight: 14 lb
