BARTON MARINE Barton BPG-50 Bulkhead Pipe Gland 50mm OD

Features

BPG-50 Bulkhead Pipe Gland 50mm OD

The Barton Bulkhead Pipe Gland BPG-50 is for pipes with an outer diameter between 45-50mm (13/4 – 2″). The required hole cutter is 60mm. It has 4 M6 fasteners supplied.

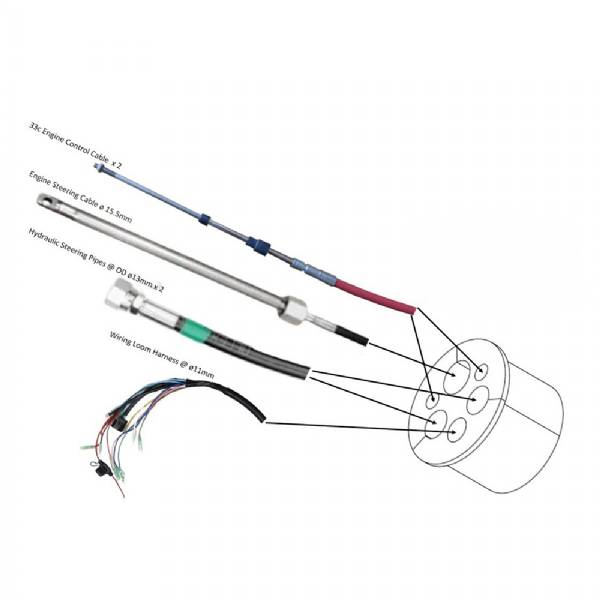

These glands give a water and vapor-proof seal between bulkheads. They are flexible and will accommodate curved surfaces and pipe entry at an angle. They are easy to fit and fully serviceable in situ.

Features:

• Vapor and watertight construction
• Seals the aperture for pipe and tube integration
• Compatible with angled pipes and curved surfaces
• Sealed but fully serviceable and adjustable
• Stainless Steel and Nitrile Rubber (BS2751)
• Suitable for bulkheads up to 35mm thick

Specifications
