B&G BNG Nemesis 7 Sailing Display

Item: 000-16518-001
This item is brand new
$1,299.00
Request price match
Backorder, ships in 3 - 4 weeks
wi|cw|wi

Description

Features

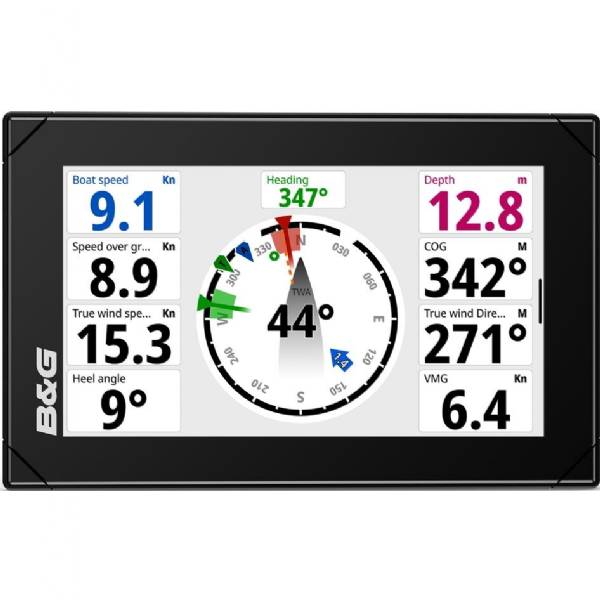

BNG Nemesis 7 Sailing Display

Model: 000-16518-001

Pre-set dashboards or easy to use drag & drop editor for full customisation
Wide choice of digital data displays including graphical gauges, SailSteer™, tank levels, IP camera views, histograms and images
Automatic Context modes: Upwind, Reaching, Downwind, Pre-start, Motoring, Pilot Status
Bright touch screen, with super-wide viewing angles
Adjustable palettes and backlight for optimal view in all conditions
Mount in portrait and landscape
Connect multiple screens via the Nemesis Hub
Ethernet and/or NMEA2000

Nemesis® 7 is the perfect solution for displaying all the crucial sailing data you need, on the mast or at the helm. The super bright touch screen provides outstanding visibility, from anywhere on the boat, in all conditions. Completely customisable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own. You can view your trusted sailing data in precisely the way you want to, ensuring you get the most accurate data right in front of you, all the time.

Specifications

Display
Display Resolution	1024 x 600
Screen Brightness	1200 nits
Viewing Angles	80 top/bottom, +/ 80 left/right
Connectivity
Ethernet Ports	1 x 100 Mbit
Connectivity Wi Fi	802.11 b/g
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
Electrical
Power Consumption max	12W
Recommended Fuse Rating	1.5 Amp
Supply Voltage	10 - 32 V DC
Environment
Operating Temperature Range	-15C to +55C (-5F to 131F)
Storage Temperature Range	-20C to +60C (-4F to 140F)
Waterproofrating	IP67
Physical
Compass Safe	500mm (19.6)
Dimensions W x H x D	195 x 123 x 68mm (7.7 x 4.8 x 2.7)
Mounting Type	Flush, Panel
Weight	0.7 kg (1.5 lbs)
Warranty Period	2 years

Specifications

Item number: 000-16518-001
UPC: 9420064140411
Package weight: 4.40 lb
