BLUE SEA M2 oled tank monitor

Contents of the package

Features

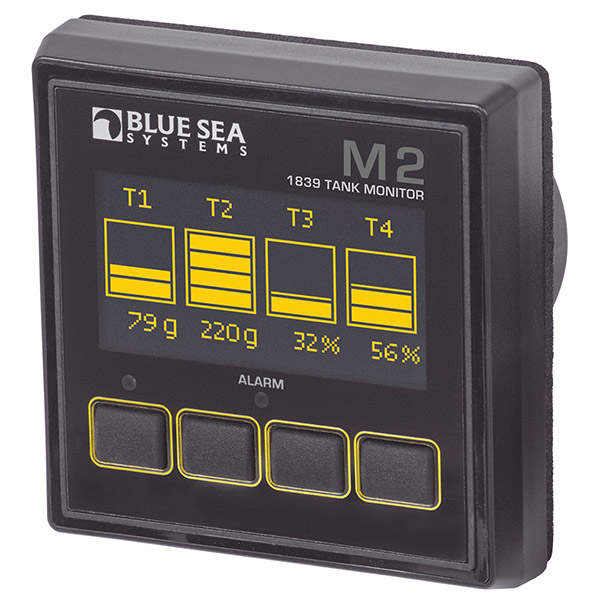

M2 OLED Tank Monitor

The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

• Auto-dimming, bright Organic LED display is easy to read

• 80dB alarm on all models

• Isolated 500mA MOSFET relay

• Includes external DC Shunt or AC Current Transformer when required

• Intuitive tank level monitoring

• Monitor up to 4 tanks

• Auto calibration for unique tank shapes

• Compatible with common sending units

Specifications

• Meter: Tank

• Function: Monitors tank volume in up to 4 tanks

• Resolution: 1%

• Display Size: 55mm x 28mm

• Input Voltage: 7-70V DC - Variable with voltage, display intensity, and sleep mode

• Range: 0.3W-1.0W

• Tank Alarms: 80dB

• Tank Shapes: Custom shapes, auto calibration

• Weight: 0.25lb (0.11 kg)

Item number: 1839
UPC: 632085018399
Package weight: 0.7 lb

---

Other Products in the Series:

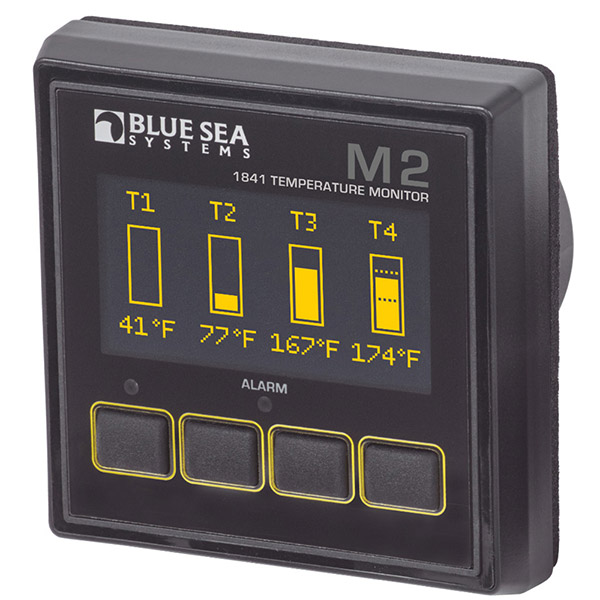

BLUE SEA M2 oled temperature monitor
