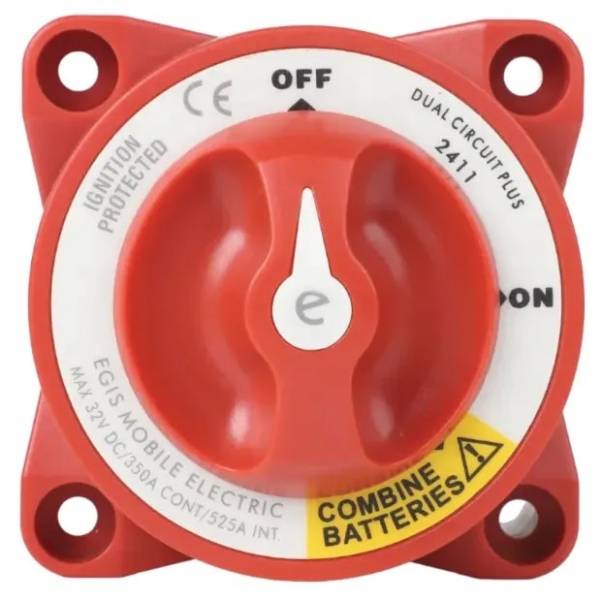

EGIS 2411 e-Series 350A Dual Circuit with Combine Battery Switch
Features
EGIS e-Series 350A Dual Circuit with Combine Battery Switch
Model: 2411- Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
- Ignition Protected
- Safe for installation in closed compartments with potential explosive gases.
- Serrated Flange Lock Nuts improves resistance to cable terminal loosening in high-vibration environments.
- Flexible Mounting Options allow for multiple mounting con?gurations and a variety of installation types.
- Harsh Environment Design with stainless-steel hardware, serrated ?ange nuts, and high temperature materials.
- Simple Batiery Control Operation allows connecting, isolating, and combining of up to two batieries with one switch.
| Maximum Voltage (Single Circuit) | 48V DC |
| Maximum Voltage (Selector / Dual Circuit) | 32V DC |
| Stud/Thread Size | 3/8"-16 |
| Terminal Stud Torque | 140 in-lbs (15.8 N-m) |
| Ring Terminal Size Acceptance | 3/8" (M10) |
| Amperage Rating | 350A |
Specifications
Item number: 2411UPC: 850067590583
Package weight: 0.65 lb
