EGIS RT Battery Terminal Mount Fuse Block 4 Circuit
Contents of the package
Features

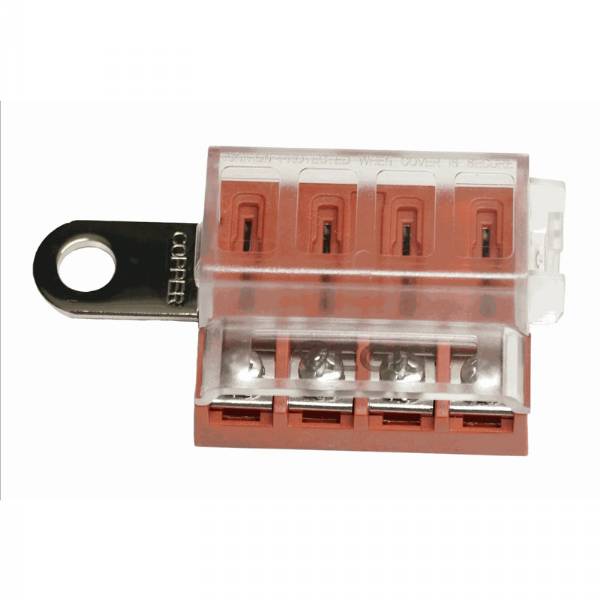

EGIS Marine RT battery Terminal Mount Fuse Block - 4 Circuit
Model: 8023- Compact battery terminal mount inline 4 position fuse block has single side wire entry for tight installations spaces.
- Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
- Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
- Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
- Supports SAE Circuit Protection Standards for thermal/short circuit events.
- Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification
- Circuit identification labels included for easy circuit/fuse diagnosis.
| CONTINUOUS CURRENT Per Circuit (AMPS) | 30 |
| Maximum Current (Entire Block) Amps | 100 |
| Nominal Voltage | 12/24Vdc |
| MAX VOLTAGE (VDC) | 60 |
| Hardware Material | Stainless Steel |
| Input Terminal Size | M5-0.8 |
What's in the Box:
- 8023 4-Circuit Fuse Block
- Circuit identification labels c
Specifications
Item number: 8023
UPC: -
Package weight: 0.90 lb
