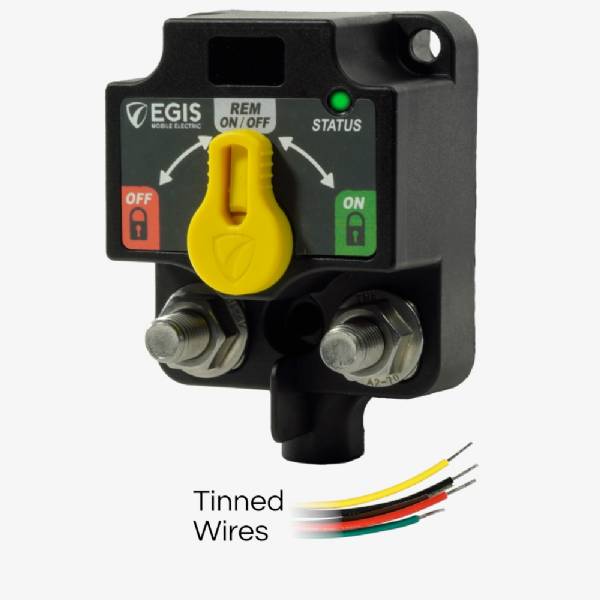

EGIS XD Single Remote Battery Switch with Knob Tinned Wires
Item: 8710-1500
This item is brand new
$110.95
Request price match
This item ships within 1 day
wi|cw|sw|wi
This item is brand new
$110.95
Request price match
This item ships within 1 day
wi|cw|sw|wi
Contents of the package
Features
EGIS XD Single - Remote Battery Switch w/Knob - Tinned Wires, Bulk Pack
Model: 8710-1500- Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
- Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
- Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
- 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
| total continous current (amps) | 500 |
| Max cranking current (amps) | 1500 |
| Mechanical switching life | 1,000,000 cycles |
| Voltage range | 8-36vDC |
| Off-state current draw | 1.3mA |
| State change current | 5A @ 12vDC 3A @ 24vDC |
Specifications
Item number: 8710-1500
UPC: 850035199992
Package weight: 1.40 lb
