FURUNO FA150 AIS Transponder Class A w/Display

---

Contents of the package

Features

The Furuno FA150 is a shipborne universal AIS (Automatic Identification System) transponder capable of exchanging navigation and ship data between own ship and other ships or coastal stations. The FA150 consists of a transponder unit and a compact display unit with 4.5inch silver bright display. The compact FA150 display is designed to accommodate a simple and space-saving installation with a user-friendly ergonomic design.  60945 (EMC and environmental conditions).


The FA150 contains a VHF transmitter, two TDMA receivers on parallel VHF channels, a DSC channel 70 receiver, interface processor and internal GPS receiver. The GPS receiver is a 12-channel all-in-view receiver and has Differential capabilities (DGPS). The GPS receiver provides UTC reference and also provides position, COG and SOG in the event that a connected external GPS receiver fails.


    Universal AIS Transceiver
    Monitors Class A Universal AIS Broadcasts
    IMO MSC.74(69) Annex 3, A.694, ITU-R M.1371-1 & DSC ITU-R M.825
    4.5" Silver Bright LCD Display
    Tracks Ship's CPA/TCPA, COG/SOG, & Name
    Dual Frequencies from 156.025MHz to 162.025MHz
    High Sensitivity, Synthesized Receiver
    Auto Switching Between International & Local AIS Channels



Static Data:

    MMSI (Maritime Mobile Service Identity)
    IMO Number
    Ship's Name
    Call Sign
    Length & Beam
    Type of Ship
    Location of Position-Fixing Antenna on Ship
    Ship's Position w/ Accuracy Indication & Integrity Status



Dynamic Data:

    Coordinated universal time (UTC)
    Course over Ground (COG)
    Speed over Ground (SOG)
    Heading
    Rate of Turn (ROT)

Voyage Related Data:

    Ship's Draft
    Hazardous Cargo
    Destination & ETA
    Safety-Related Messages

Specifications

Static data:

• MMSI (Maritime Mobile Service Identity)
• Call sign & Ship’s name
• Type of ship
• Location of position-fixing antenna on the ship

Dynamic data:

• Ship's position with accuracy indication and integrity status
• Universal Time Coordinated (UTC)
• Course over ground (COG)
• Speed over ground (SOG)
• Heading

Voyage-related data:

• Hazardous cargo (type)
• Short safety-related messages, pre-set messages

  Power Requirements

  • 12-24 VDC

  Notes

  1. UAIS rated VHF Antenna is required option - use 001-034-670 or purchase locally
  2. Neither GPA017S/S nor 000-133-670 is required if GVA100/DB1 is used
  3. 100-183-262 Pipe/Mast Mount is required if utilizing locally purchased VHF Antenna - not required if utilizing 001-034-670 VHF Antenna
  4. If an aftermarket antenna is used, it must be capable of transmitting at 156.025 - 162.025 mHz
  5. Antenna mounting hardware and antenna coax cable not included

Item number: FA150
UPC: 611679289261
Package weight: 28 lb

---

Other Products in the Series:

	FURUNO AIS Pilot Plug w/ 10m Cable	Add to comparison

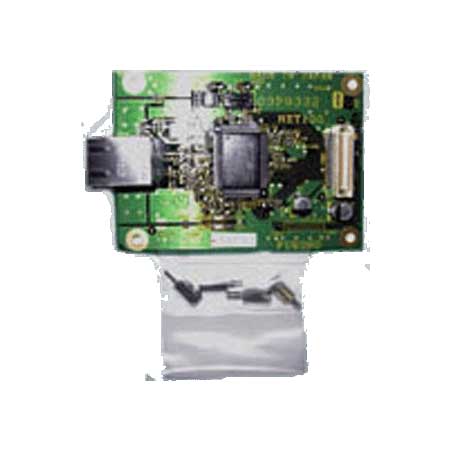

	FURUNO LAN Option Kit for FA150 AIS	Add to comparison

---
