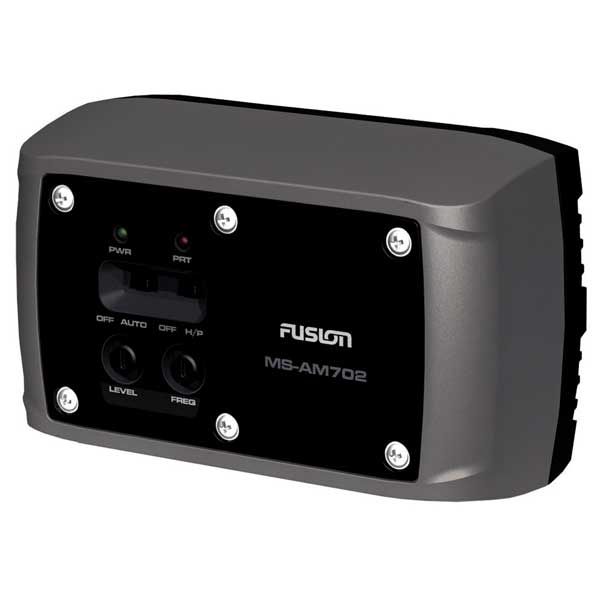

FUSION MS-AM702 50W 2 Channel Zone Amplifier

---

Contents of the package

Features

Class D, 70W x 2 Zone Amplifier

FUSION's Marine Zone Amplifier is designed to support the multi-zone technology. The Zone Amplifier is small, enabling discrete installation and when combined with the Marine Stereo Unit provides the platform for a True multi-zone audio system.

Why Do I Need A Zone Amplifier?
A Marine Zone Amplifier is needed if you are planning a multi-zoned system, comprising of three or four zones.

FUSION's Marine Stereo Units have the capability to run up to four pairs of speakers. You will also need to install a Marine Zone Amplifier if your sound system has more than four pairs of speakers.

    2 Channel
    Class D
    70W x 2
    2 Ohm Stable
    Water resistant design
    Conformal coated PCB
    Audio detect selectable function the amplifier turns on when audio is detected and goes to sleep / low power mode when audio is not present
    Selectable high pass/ full range setting
    Variable high pass filter
    Small and discrete size: 128 x 78 x 51mm
    High Pass Crossover: 60Hz-600Hz
    Operating Range: 10-16V DC
    Max Power Rating (Watts): D-Class 70W
    Ratings per channel: 20W RMS @ 4 ohms per channel: 33WRMS @ 2 ohms per channel

Specifications

The specified price is for: 1 item

Power                   20 Watts per channel @ 4 ohms, 2 channels
Other Functions    Required when a third speaker zone is added to a Fusion Marine Stereo
Dimensions           6.2"W x 3.1"H x 2"D
Waterproof           No
Warranty              Three year, plus two year guaranteed flat rate repair


Item number: MS-AM702
UPC: 878816004082
Package weight: 1.3 lb

---

Other Products in the Series:

	FUSION 250 Watt, 2 Channel Amplifier	Add to comparison

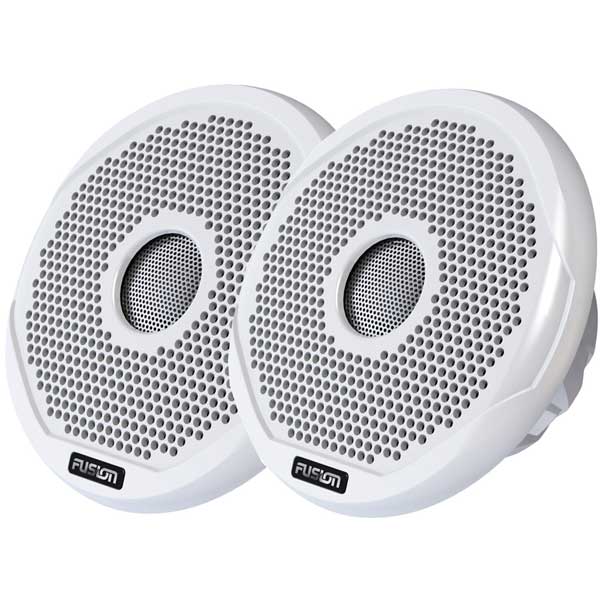

	FUSION 4 inch High Perf 2-Way Speakers, 120 Watt	Add to comparison
	FUSION 500 Watt, 4 Channel Amplifier, 2 Ohm	Add to comparison

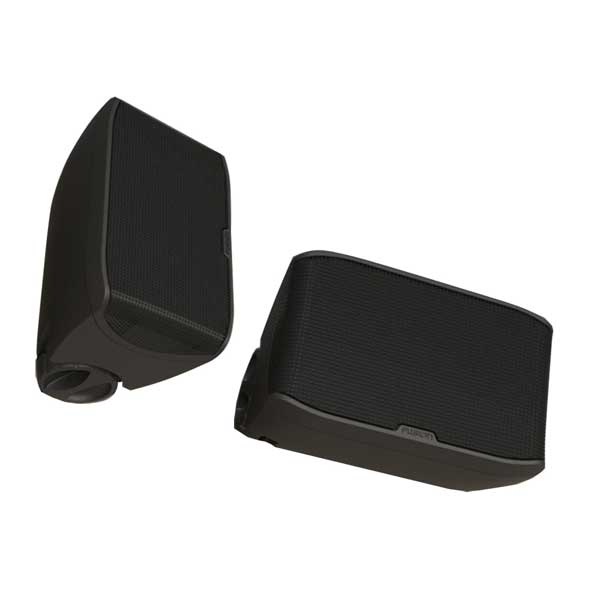

	FUSION Box Type In-Salon Speakers	Add to comparison
	FUSION Compact Box Speaker, pair, white, 100W	Add to comparison
	FUSION Compact Box Speaker, pair, white, 100W	Add to comparison

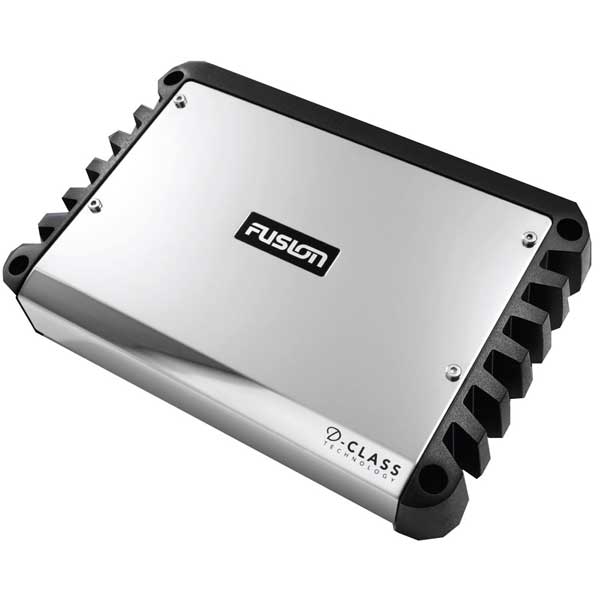

	FUSION DA51600 1600 Watt 5 Channel Amplifier	Add to comparison
	FUSION FM-402 200 Watt 2 Channel Amplifier	Add to comparison

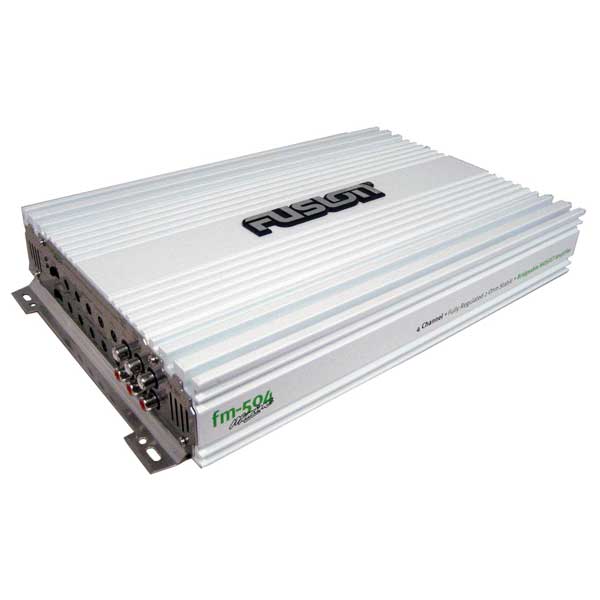

	FUSION FM-504 500 Watt 4 Channel Amplifier	Add to comparison
