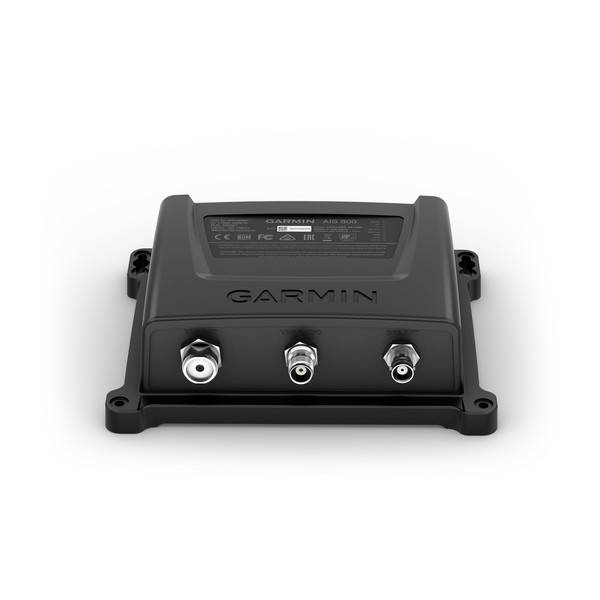

GARMIN AIS 800 Black Box Transceiver

Item: 010-02087-00
Ask a question   Tell a friend

1 reviews - 5.0

This Item is Brand New
$816.95
Request Price Match

Available after 7/8/2022

wi|cw|sw|wi Check Shipping Cost

Contents of the Package

AIS 800
NMEA 2000® T-connector
NMEA 2000 drop cable (2 meters)
VHF antenna extension (1.2 meters)
USB adapter cable
Power cable
Mounting hardware
Documentation



Features

Help Avoid Running into Trouble on the Water
Easy-to-use, reliable communication transmits your vessel information to other AIS receivers in your area while receiving AIS target data
5 watts of transmit power with Class B/SO provides faster positioning reporting than ever before¹
Built-in GPS with connector for optional external antenna
NMEA 2000® connectivity for easy integration with compatible chartplotters and multifunction displays
Internal VHF antenna splitter allows VHF and AIS to share a single antenna

Increase your situational awareness and confidence on the water with the Garmin AIS 800 transceiver. It has 5 watts of transmit power and provides faster position reporting than ever before¹. It transmits your vessel information to other AIS receivers in your area while it receives their AIS target data. Garmin AIS 800 has an internal VHF antenna splitter, which allows the VHF and AIS to share a single antenna. It includes a built-in GPS (with connector for optional external antenna) and integrates seamlessly into the Garmin onboard system. The transceiver features NMEA 2000/0183 connectivity for easy integration with compatible chartplotters and multifunction displays. And it’s all packed into an easy-to-install black box unit with a small footprint.



Specifications

Dimensions: 17.5 x 14.2 x 5.5 cm
Weight: 0.9 lbs (414 g)
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
Waterproof Rating: IPX7
Compass safe distance: 15.8” (40 cm)
Operating Voltage: 9.6 - 31.2 Vdc
Current Drain: 12Vdc: < 400 mA; 24Vdc: <250 mA
Antenna Connector: S0-239 (50 Ω)
GPS refresh rate: 1 Hz
Max Antenna Gain: 9 dB
Transmitter Power: 5 W
NMEA 2000 LEN: 2
NMEA 0183: Yes


Item number: 010-02087-00
UPC: 753759209919
Shipping weight: 2.50 lb

Product Reviews

Following reviews were written by actual customers.
Every GPS4US customer has a chance to live a feedback after receiving a product.



by Daniel J W, , 8/6/2020
Works perfectly

List of Compatible Units:

GARMIN GPSMAP 1242xsv Plus Touchscreen GPS/Fishfinder Combo



Note: Displayed are products sold in gps4us store.
There might be more GPS units compatible with chosen accessory.
