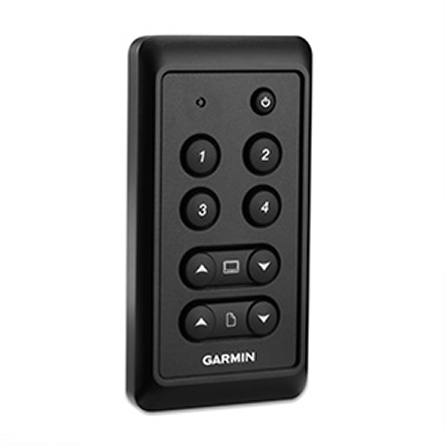

GARMIN GNX Keypad


Item: 010-12255-00
This item is brand new
$175.95
Extended Wty:none 1 yr.$17.60 2 yr.$26.39

Qty:
Backorder, ships in 3 - 4 weeks
cw|cw|sw
Ask a question   Tell a friend



Contents of the package





Features

Control a compatible GNX instrument display from a distance with this push-button keypad interface which can be fixed-mounted near the helm. It features 4 buttons dedicated to preset configurations. Plus, you can adjust the background lighting of all displays with the touch of a button.


Specifications

  • Physical dimensions: 59 x 115 x 15 mm (2.32'' x 4.53'' x .59'')
  • Weight: 95 g (3.4 oz)
  • Water rating: IPX7
  • Temperature range: From 5 to 158F (from -15 to 70C)
  • Voltage range: 9-16 V (from NMEA 2000)
  • Power consumption: 0.2 W
  • Mounting options: Flush
  • NMEA 2000 certified: Yes
  • NMEA 0183 compatible: No
  • Auto-on: Yes


Item number: 010-12255-00
UPC: 753759138202
Package weight: 0.9 lb

List of Compatible Units:

GARMIN GNX 120 7-inch Large Format Marine Instrument
GARMIN GNX 130 10-inch Large Format Marine Instrument



Note: Displayed are products sold in gps4us store.
There might be more GPS units compatible with chosen accessory.
