Contents of the PackageGPS 152H
Bail mount and knobs
Power/data cable
Documentation

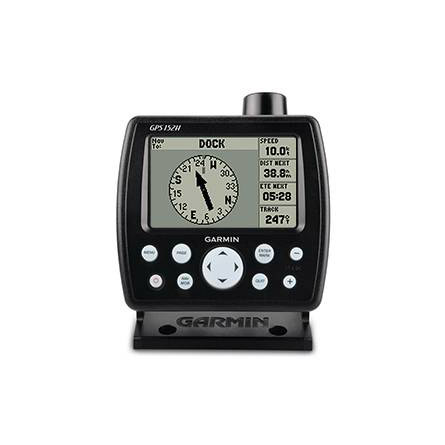

FeaturesWith the high-sensitivity GPS 152H, you get a grayscale trackplotter with loads of
user-friendly features that are perfect for your boat.
Quick positioning
The GPS 152H gives you a high-sensitivity GPS receiver with an internal GPS antenna
and built-in BNC connector for an external antenna connection. That means it quickly
acquires satellite signals, no matter where you are. It also receives position
corrections from WAAS, which makes it even more reliable. When you turn on WAAS, you
increase the accuracy of your GPS 152H to within three meters.
So much storage
The GPS 152H has an increased memory, so you can store up to 3,000 waypoints and 50
routes. Plus, the 40-inch diagonal high-contrast display shows you clear navigation.
Garmin also added a NMEA 0183 output to that allows you to send position data to
other electronic devices on your boat.

Specifications
Physical & Performance:
Unit dimensions, WxHxD: 5.3" x 4.9" x 2.4" (13.4 x 12.5 x 6.1 cm)
Display size, WxH: 3.5" x 2.3", 4.0" diagonal (8.9 x 5.8 cm, 10.2 cm diagonal)
Display resolution, WxH: 160 x 100 pixels
Display type: 4-level grayscale LCD
Weight: 1 lb. (454 g)
Battery: none
Battery life: none
Waterproof: yes (IPX7)
High-sensitivity receiver: yes
Antenna: internal or remote
NMEA input/output: NMEA 0183
Maps & Memory:
Basemap: no
Preloaded maps: no
Ability to add maps: no
Built-in memory: 1 MB
Accepts data cards: none
Waypoints/favorites/locations: 3,000
Routes: 50
Track log: 10,000 points
Features:
Garmin radar compatible: no
Garmin sonar compatible: no
Garmin Marine Network™ compatible: no
Touchscreen: no
Supports AIS (tracks target ships' position): no
Supports DSC (displays position data from DSC capable VHF radio): no
Audible alarms: yes
Tide tables: yes
Hunt/fish calendar: no
Sun and moon information: yes
3-D map view: no
Auto Guidance: no
XM WX Weather & Radio for U.S. & Canada compatible: no
Automatic routing (turn by turn routing on roads): no
Voice prompts (e.g. "Turn right in 500 ft."): no
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."): no
Headphone jack/audio line-out: no
Audio/video input/output: no
Portable: no
Automotive/motorcycle-friendly: no
Item number: 010-00909-00
UPC: 753759105983
Shipping weight: 3 lb |
