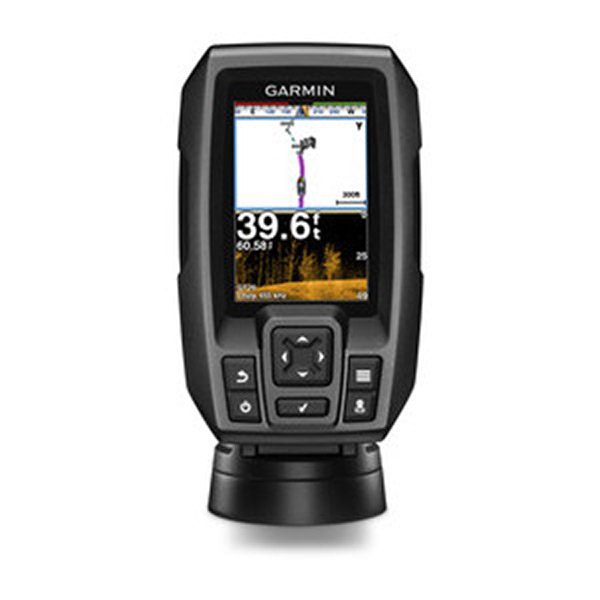

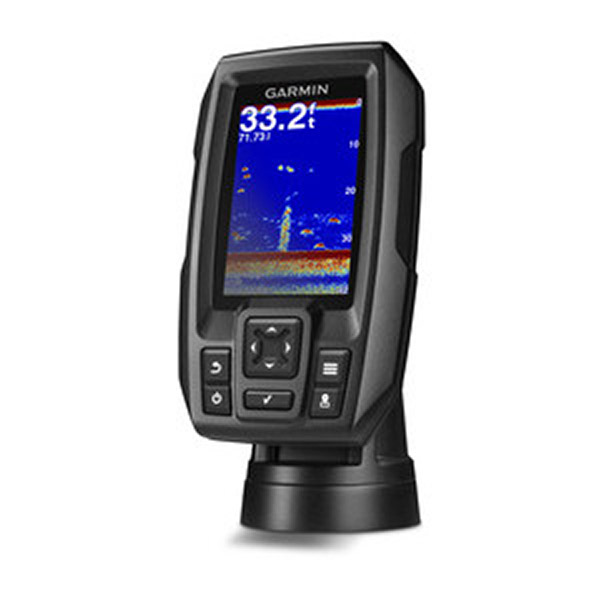

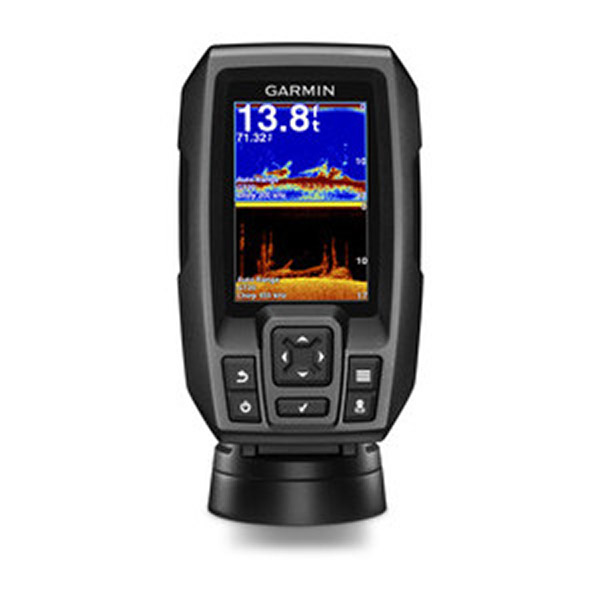

GARMIN STRIKER 4cv
Adapters Chargers
Cables
Cases and Covers
010-12441-00
Protective Cover for STRIKER 4 4dv and 4cv
Protective Cover for STRIKER 4 4dv and 4cv
No Longer Available
Kits
Mounts
Transducers Garmin 4/12/18-pin ( Transducer Guide )
Transducers Garmin 8-pin/bare wires In-hull ( Transducer Guide )
Transducers Garmin 8-pin/bare wires Thru-hull ( Transducer Guide )
010-10200-20
P72-8G 500W 77/200 kHz Transducer
P72-8G 500W 77/200 kHz Transducer
No Longer Available
Transducers Garmin 8-pin/bare wires Transom ( Transducer Guide )
Various
010-12758-00
CV20-TM ClearVu CHIRP Transom Mount 4-Pin
CV20-TM ClearVu CHIRP Transom Mount 4-Pin
No Longer Available
Contents of the package
- STRIKER 4cv
- Transducer
- Transom and trolling motor mounts
- Tilt/swivel mount
- Power cable
- Documentation
Features
3.5-inch CHIRP Fishfinder with GPS and ClearVü Scanning SonarEasy-to-use 3.5-inch color fishfinder with built-in, high-sensitivity GPS and Garmin CHIRP ClearVü™ scanning sonar
Find fish; mark and return to hot spots, docks and ramps
Includes Garmin transducer with CHIRP (77/200 kHz) and CHIRP ClearVü (455/800 kHz) with 500 W power
Includes built-in flasher
Speed data displayed directly on screen
Finding fish is easier than ever with STRIKER 4cv fishfinder. Mark and return to your hot spots, boat ramps and docks. You also can share your favorite waypoints and routes with other STRIKER and echoMAP™ combos. Plus, it has a built-in flasher and displays speed data. Includes tilt/swivel mount, CHIRP (77/200 kHz) sonar transducer with transom and trolling motor mounting hardware and cable.
Experience the Clarity of CHIRP
STRIKER 4cv includes a Garmin CHIRP (77/200 kHz) transducer, which provides a visibly higher level of clarity and detail for fish and structure than traditional 77/200 kHz transducers.
Instead of sending just 1 single frequency, CHIRP sends a continuous sweep of frequencies, ranging from low to high, then interprets them individually upon their return. Since the frequencies provide a wider range of information, CHIRP sonar technology can create crisper fish arches with greater target separation.
Clear Scanning Sonar Images
Garmin ClearVü scanning sonar gives you a nearly photographic, wide image of what passes below your boat. You clearly see structure, submerged objects and fish. Traditional Garmin CHIRP sonar and CHIRP ClearVü scanning sonar are combined into 1 transducer.
Mark Spots with High-sensitivity GPS
Unlike regular fishfinders, STRIKER fishfinders have built-in, high-sensitivity GPS to locate your current position quickly and precisely, then maintain your GPS location anywhere you go on the lake. More importantly, they allow you to mark spots where the fish are biting so you can return to them again in the future. You also can mark docks, boat ramps and other locations on the lake. Just follow the path created on your screen to return to them whenever you wish.
Navigate Easily with Waypoint Map
Since the STRIKER fishfinder series includes high-sensitivity GPS, you can see your position in relation to waypoints you have marked. Use the waypoint map to easily view, mark and navigate to locations such as brush piles, stumps and docks. It’s also a great tool for finding your way back to the boat ramp.
Check Your Speed on Screen
You can quickly and easily see your boat’s speed on the screen of your STRIKER fishfinder. It’s a great tool to make sure you are trolling at the right speed for the lure you’re using and for a particular fish species. It’s also a good way to tell if you are going the right speed in wake-controlled areas.
Fish Vertically with Built-in Flasher
STRIKER provides you with both a fishfinder and flasher all in 1 unit. Anytime you are stationary fishing, such as ice fishing or jigging for crappie, the built-in flasher will show you the bottom, whether it is solid or muddy, your jig or weighted bait and the depth of fish as they swim into the sonar beam. You can even watch how high your jig is being lifted and dropped and whether fish move toward or away from it.
Take Your Fishfinder Anywhere
A portable kit is available to protect and carry your STRIKER fishfinder with GPS, so it’s perfect for kayak, canoe or ice fishing. It includes a sealed, rechargeable battery with charger, built-in transducer cable management and storage and suction cup transducer mount and float.
Specifications
Physical & Performance
Physical dimensions | 3.6'' x 5.9'' x 1.6'' (91.6 x 150.8 x 42.8 cm) |
---|---|
Display size, WxH | 1.9'' x 2.9'' (4.9 x 7.3 cm); 3.5'' diag, (8.7 cm) |
Display resolution, WxH | 480 x 320 pixels |
Display type | HVGA color |
Weight | 8.1 oz (230g) |
Water rating | IPX7 |
Audible alarms |
|
Sonar Features & Specifications |
|
Dual-frequency (50/200 kHz) sonar capable |
|
---|---|
Dual-beam (77/200 kHz) sonar capable |
|
Frequencies supported |
Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz |
Transmit power | 300 W (RMS) |
Maximum depth | 1,750 ft freshwater*, 830 ft saltwater* |
Bottom lock (shows return from the bottom up) |
|
Water temperature log and graph |
|
Fishfinder Features |
|
Split-screen zoom |
|
---|---|
Ultrascroll® (displays fish targets at higher boat speeds) |
|
Fish Symbol ID (helps identify fish targets) |
|
AutoGain Technology (minimizes clutter, maximizes targets) |
|
Adjustable depth line (measures depth of underwater objects) |
|
A-scope (real time display of fish passing through transducer beam) |
|
Water temperature sensor included |
|
Additional |
|
Additional |
|
---|
Compare Products:

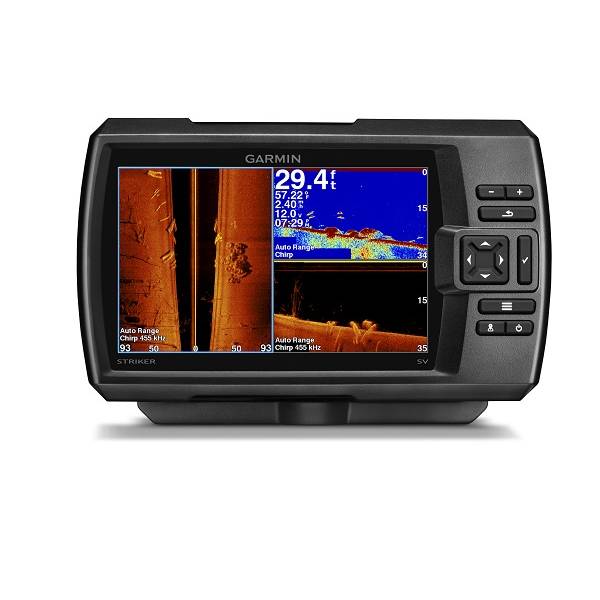

STRIKER 4 | STRIKER 4cv | STRIKER 5cv | STRIKER 7cv | STRIKER 7sv | |
Display size (diagonal) | 3.5” | 3.5” | 5.0” | 7.0” | 7.0” |
Display resolution | 480 x 320 HVGA | 480 x 320 HVGA | 800 x 480 WVGA | 800 x 480 WVGA | 800 x 480 WVGA |
Internal high-sensitivity GPS | • | • | • | • | • |
CHIRP traditional sonar | • | • | • | • | • |
Dual frequency (50/200 kHz) | • | • | • | • | • |
Dual beam (77/200 kHz) | • | • | • | • | • |
CHIRP ClearVü | • | • | • | • | |
CHIRP SideVü | • | ||||
Included transducer | CHIRP Traditional: 77/200 kHz | CHIRP Traditional: 77/200 kHz ClearVü: 455/800 kHz | CHIRP Traditional: 77/200 kHz ClearVü: 455/800 kHz | CHIRP Traditional: 77/200 kHz ClearVü: 455/800 kHz | CHIRP Traditional: 77/200 kHz ClearVü: 455/800 kHz SideVü: 455/800 kHz |
Transmit power | 200 W (RMS) 1,600 W (peak-to-peak) | 300 W (RMS) 2,400 W (peak-to-peak) | 500 W (RMS) 4,000 W (peak-to-peak) | 500 W (RMS) 4,000 W (peak-to-peak) | 500 W (RMS) 4,000 W (peak-to-peak) |
Frequencies supported (kHz) | Traditional: 50/77/200 CHIRP (mid-band, high) | Traditional: 50/77/200 CHIRP (mid-band, high) ClearVü: 260/455/800 | Traditional: 50/77/200 CHIRP (mid-band, high) ClearVü: 260/455/800 | Traditional: 50/77/200 CHIRP (mid-band, high) ClearVü: 260/455/800 | Traditional: 50/77/200 CHIRP (mid-band, high) ClearVü/SideVü: 260/ 455/800 |
Maximum depth capabilities with included transducer | 1,600 ft (traditional) | 1, 750 ft (traditional) 250 ft (ClearVü) | 1,900 ft (traditional) 250 ft (ClearVü) | 1,900 ft (traditional) 250 ft (ClearVü) | 800 ft (traditional) 250 ft (ClearVü) 500 ft Left/Right (SideVü) |
Waypoints | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 |
Audible alarms | • | • | • | • | • |
User Data Sharing Cable compatible | • | • | • | • | • |
Water temperature log/graph | • | • | • | • | • |
GPS speed | • | • | • | • | • |
Flasher | • | • | • | • | • |
Item number: 010-01806-00
UPC: 753759175955
Package weight: 3 lb
