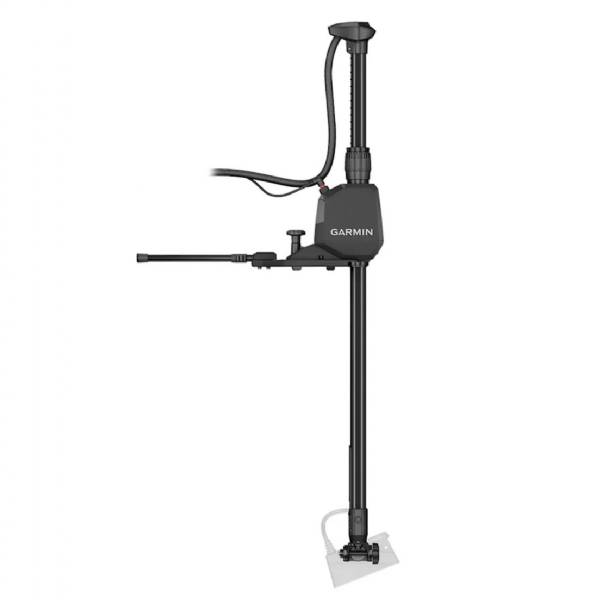

GARMIN Spy Pole 49in Motorized Pole Mount

---

Contents of the package

Features

TAKE FULL COMMAND OF YOUR UNDERWATER VIEW
Mount your transducers to Spy pole, the revolutionary motorized sonar control, to precisely and wirelessly maneuver LiveScope™ and GT360UHD transducers.

INDEPENDENTLY CONTROL YOUR SONAR WITH WIRELESS REMOTE OR FOOT CONTROL
MOUNT IT TO YOUR TROLLING MOTOR OR YOUR GUNNEL1
INTEGRATES WITH YOUR CHARTPLOTTER AND SELECT FORCE® TROLLING MOTORS
BUILT TO HOLD BOTH LIVESCOPE AND 360 TRANSDUCERS
INITIATE MULTIPLE LIVESCOPE CONTROL MODES WIRELESSLY

INTUITIVE POSITIONING
Keep your boat where you want it and have full control of your LiveScope sonar from a range of control modes, including SpyLock™ point locking technology, SpyScan™ search mode and SpyLink™ control mode.

MULTIPLE MOUNTING OPTIONS
Easily mount Spy pole to your Force or Force Pro trolling motor — or mount it directly to your boat’s deck1. And enjoy smooth dismount with a quick-release system.

CONTROL AT YOUR FINGERTIPS
Attach the included remote to your rod or use it as a handheld to maneuver Spy pole with a simple turn of the wrist or the press of a button.

FOOT CONTROL
Use the included low-profile, easy-to-use foot control to position Spy pole, keeping your hands free to fish.

CHARTPLOTTER INTEGRATION
Configure and control Spy pole with your compatible Garmin chartplotter.

ONEVÜ™ SONAR
Mount the GT360UHD transducer to see OneVü sonar with True Motion technology. Add LiveScope to unlock an additional live overlay in 3D mode.

TRUE MOTION
With True Motion technology and your GT360UHD, scans stay true to location as your boat moves.

SPYLOCK
Lock your LiveScope sonar on any point of interest, such as a brush pile, rock mound or waypoint.

SPYSCAN
Automatically sweep Spy pole back and forth in any direction to simplify your search for fish and structure.

SPYLINK
Synchronize with the speed and direction of your Force or Force Pro trolling motor, then control Spy with your Force pedal while in anchor lock.

Specifications

General
For use in - freshwater, brackish water and saltwater
Mount style - quick-release, reversible
Voltage - 10V - 45V
Electric steering - yes
Shaft length (from shaft cap to shaft end) - 42" or 49"
Adjustable shaft depth - yes
Water rating (components above water) - IPX7
Warranty - 3-year, limited lifetime on shaft
Mounting location - Force, Force Pro (included); Deck and Gunnel (accessories required)
Deck stabilizer rod - yes (included)
Dogbone stabilizer - compatible, required with 2 or more transducers (not included)

Electrical Features
Power Input - Wired 2 m (6.6 ft) cable
Power usage - 18 W typical; 70 W max
Fuse - 8 A

Transducer Support
LiveScope™ adjustable perspective bottom mount - Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5°
Supported LiveScope transducers - LVS32, LVS34, LVS62 (max of one with internal cable routing)
OneVü scanning transducer support - yes
Internal cable routing - yes
Quick-release cable kit - yes

Connections
Compatible chartplotters - Wireless
Compatible Force trolling motors - Wireless
Control accessories - Wireless
Maximum connections - 5 gesture remotes
1 foot control
1 heading sensor
1 trolling motor
1 chartplotter network

Foot Control
Dimensions - 7.8" x 5.8" x 1.8"
Wireless communication - yes
Power supply - 2 AA batteries (not included)
Battery life (typical use) - 1 full season
Water rating - IPX7
Programmable buttons - yes (2)
Status indication - LED light
Quick-release mount - yes

Gesture Remote
Dimensions - 1.25" diameter x 0.5“ thickness
Wireless communication - yes
Power supply - CR2032 battery (included)
Battery life (typical use) - 1 full season
Water rating - IPX7
Programmable buttons - yes (3)
Status indication - LED light
Quick-release mounting options - 2 rod, hat, handheld with lanyard
Floats - yes (with handheld only)
Steering - yes (swing and twist)

Heading Sensor
Dimensions - 3.5" x 2.0" x 1.0"
Wireless communication - yes
Voltage - 10 V-45 V
Power input - Wired, 2 m (6.5 ft) cable
Power usage - 0.1 W typical; 1 W max
Fuse - 1 A
Water rating - IPX7
Status indication - LED light

Item number: 010-03012-20
UPC: 753759369248
Package weight: 29.80 lb

---
