HUMMINBIRD 14-M360-2DDI-Y - MEGA 360 and 2D/MDI 14-Pin Y-Cable
Item: 720108-1
This item is brand new
$76.95
This item ships within 1 day
cw|cw|sw|wi|ln
This item is brand new
$76.95
This item ships within 1 day
cw|cw|sw|wi|ln
Features

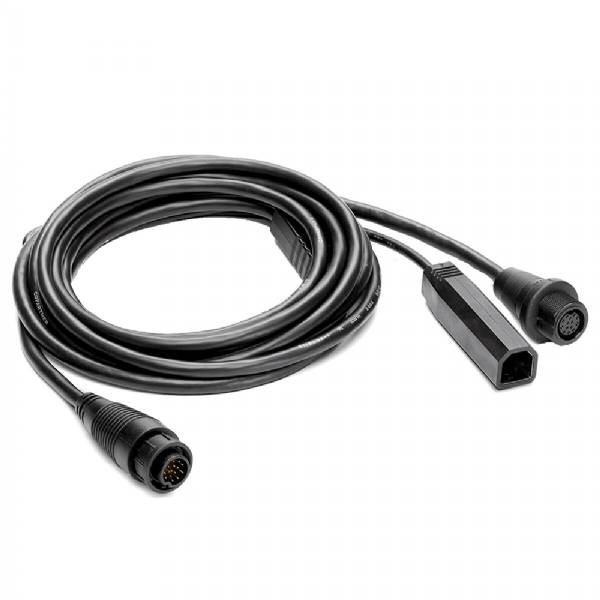

14-M360-2DDI-Y - MEGA 360 & 2D/MDI 14-Pin Y-Cable
This Y cable allows for the connection of a MEGA 360 Imaging transducer and a 14-pin HW / MDI+ transducer (including Built-in MEGA Imaging) to the same compatible Humminbird fish finder.
- Combines MEGA 360 Imaging transducer and 14-pin Dual Spectrum / MEGA Imaging+ transducers (including Built-in MEGA Imaging) into one 14-pin plug for connection to the same, compatible SOLIX fish finder, or HELIX fish finder with additional AD HELIX M360 adapter.
- For use when connecting a MEGA 360 Imaging transducer to a compatible SOLIX or HELIX fish finder, in conjunction with a Built-in MEGA Imaging transducer or external 14-pin HW /MDI+ transducer.
- If this cable is being used with a HELIX fish finder, then the #720106-1 AD HELIX M360 adapter must be attached between this y-cable and the HELIX unit, to the single plug end of the Y cable.
- Compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
- 30" (76 cm) cable on Dual Sprectrum CHIRP side of cable
- 10' (3 m) cable on the MEGA 360 side
- Waterproof, screw-on, 14-pin connectors
- 1-Year Limited Warranty
Specifications
Item number: 720108-1UPC: 082324054860
Package weight: 2.00 lb
List of Compatible Units:
| HUMMINBIRD MEGA 360 IMAGING FORTREX |
| HUMMINBIRD MEGA 360 Imaging Ultrex |
| HUMMINBIRD Mega 360 Imaging Universal Mount |
Note: Displayed are products sold in gps4us store.
There might be more GPS units compatible with chosen accessory.
