HUMMINBIRD PiranhaMAX 230 Portable

Item: 406880-1
image1 image2 image3 image4
Ask a question   Tell a friend    Bookmark and Share


This Item is Brand New
$189.99

DISCONTINUED

Contents of the Package





Features

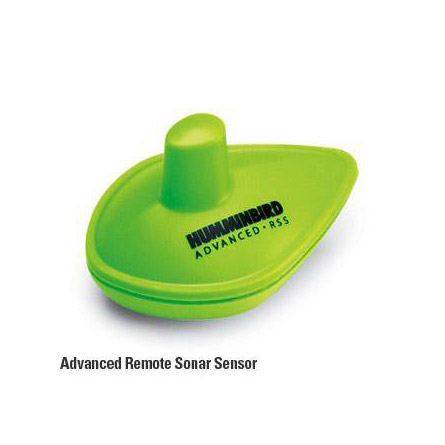

The PiranhaMAX 230 Portable features a 4 level grayscale 160V x 132H 4" display, Dual Beam sonar with 800 Watts PTP power output, and SmartCast Wireless Remote Sonar Sensor‚ all in a rugged hardshell carry case


Specifications

Display Size: 4.0" diagonal
Display Pixel Matrix: 160V x 132H
Display Type: FSTN LCD
Display Colors/Grayscale: 4 Level Grayscale

Dual Beam
Sonar Coverage 200 kHz / 20° @ -10db
83 kHz / 60° @ -10db

SmartCast
Sonar Coverage 125 kHz / 90° @ -10db

Wireless Range: 100 ft
Target Separation: 2.5 inches
Power Output (RMS): 100 Watts (RMS)
Power Output (Peak to Peak): 800 Watts (Peak-to-Peak)
Temperature: Included
Backlight: Yes
Waterproof: Yes
Mount: Portable Clamp
Unit Size: n/a

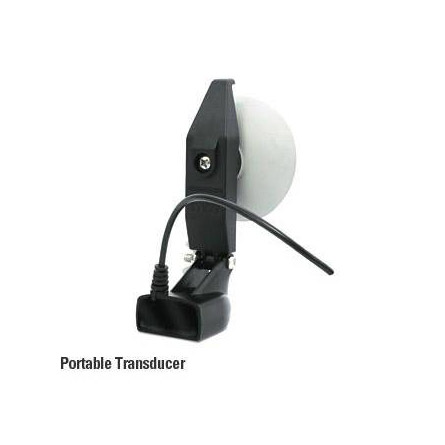

Transducer - Standard: XPT-9-20-T
Transducer Mounting: Suction Cup
Power Input: 10-20 VDC
Warranty - One Year

All products advertised and sold in the United States operate in English Language, Feet/Fathoms, Fahrenheit and/or US Maps. Local languages, Metric product and/or local maps are only available through your local authorized distributor.



Item number: 406880-1
UPC: 082324031595
Package weight: 3.5 lb
