ICOM M803 SSB

Item: M803
Ask a question   Tell a friend

This Item is Brand New
$2,699.95


cw|cw|sw|wi Backorder, ships in 3-4 weeks

Features

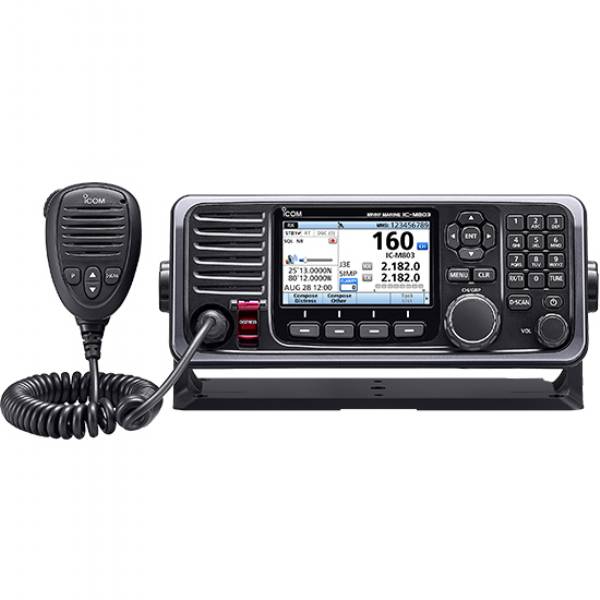

Icom M803 SSB Radio

Model: M803
  • Large Color Display
  • Intuitive User Interface
  • Emergency Distress Button
  • Dedicated DSC Scanning
  • Two Minute Memory Instant Replay Memory
  • NMEA 0183 Version 4.10 data input/output (4800-38400 bps)
  • HF email operation with frequency, mode and bandwidth memorization*

Users will like the large 4.3" wide viewing angle color TFT display. Clearly see the high resolution display icons on the LCD screen from numerous positions with the nearly 180 degree wide viewing angle, which provides various installation placement possibilities. The night mode display offers readability in low-light conditions.

Users will like the large 4.3" wide viewing angle color TFT display. Clearly see the high resolution display icons on the LCD screen from numerous positions with the nearly 180 degree wide viewing angle, which provides various installation placement possibilities. The night mode display offers readability in low-light conditions.

Smoothly operate and sail with the M803’s large main dial and keys to access functions such as accessing MMSI numbers, vessel numbers, and channels with the full alpha-numeric keypad. Assign one of the software key functions to the microphone’s programmable button for quick access. Additionally the head unit offers programmable keys for customizable access.

The M803’s big and easily identifiable emergency distress button is encased in a spring loaded cover. Once pressed a digital distress signal is sent with GPS coordinates and calls for help to other ships or coast stations. The GPS receiver offers GPS, GLONASS, SBAS, position data, speed and UTC data when using the supplied GPS antenna. Position data may be output from the NMEA 0183 port for use with other devices.

The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. If you are in process with a DSC call and receive another call, the M803 can switch between calls with the Multiple Task Mode function. 100 MMSI numbers (75 individual/25 group) for DSC calls can be stored with a 10-character name.

The Instant Replay Function allows users to replay up to two minutes of previous conversations or calls. The function constantly loops and records over older audio.

*Consult with an HF email provider for details

Specifications
Antenna impedance50 Ohms (unbalanced)
Usable temperature range-20°C to +55°C, -4°F to +131°F
Frequency stabilityTx/Rx - +/- 10 Hz (below 29.999 MHz)
DSC - +/ - 10 Hz
Power supply requirement13.6V DC +/- 15% (Negative ground)
Current drain (at 13.6V DC)Receive - Less than 3.0 A (Maximum audio output)
Transmit - 30A (Maximum output power)
Transmitter
Output power150, 100, 60, 20 W PEP (selectable)
Spurious emissionsLess than -62 dB (Peak output power)
Carrier suppressionMore than 40 dB (Peak output power)
Unwanted sideband suppressionMore than 55 dB (Peak output powerwith 1500 Hz AF Input)
Microphone impedance600 Ohms
Dimensions (Projections not included)
Main unit240 94 238 mm, 9.4 3.7 9.4 in (W H D)
Controller274 114 86 mm, 10.8 4.5 3.4 in (W H D)

What's in the Box:
  • Main Unit
  • Remote controller
  • Mounting bracket kits
  • Remote control cable (5 m, 16.4 ft)
  • GPS antenna (5m, 16.4 ft cable)
  • ACC plugs
  • Microphone, HM-214H
  • Microphone hanger
  • Spare fuses



  • Specifications

    Item number: M803
    UPC: 731797034670
    Shipping weight: 25.00 lb
