JL AUDIO AP200/BT Amplifier with Bluetooth and Remote
Item: 010-03431-00
This item is brand new
$549.99
Request price match
This item ships within 1 day
wi|sw|wi
This item is brand new
$549.99
Request price match
This item ships within 1 day
wi|sw|wi
Contents of the package
Features

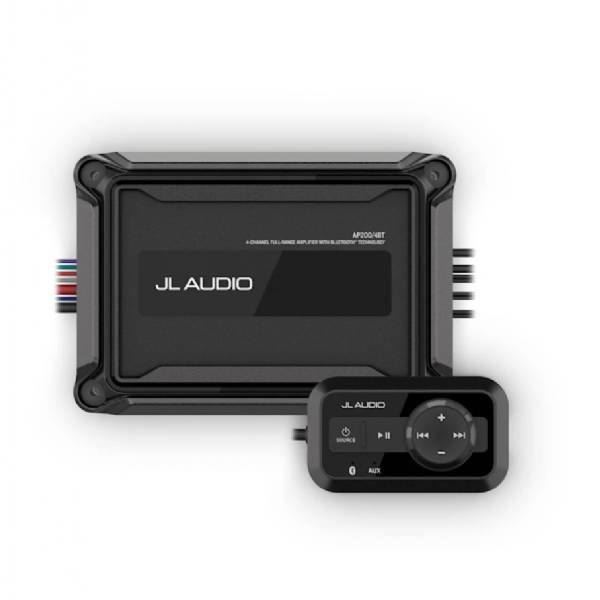

JL Audio AP200/BT Amplifier with Bluetooth and Remote
Model: 010-03431-00- CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
- STREAM ON THE GO: This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface- or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski or overland vehicle.
- RUGGED DESIGN: The included remote is IPX7-rated and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.
POWER THE MOMENT: With this tough and ultracompact 4 channel amplifier featuring Bluetooth® technology, you can enjoy every note from every part of your boat.
Specifications| General | |
| Channels | 4 Channel |
| Physical dimensions (Height) | 1.85" (47 mm) |
| Physical dimensions (Width) | 7.28" (185 mm) |
| Physical dimensions (Depth) | 4.90" (125 mm) |
| Operating voltage | 9-16 VDC |
| Water and dust rating | IP67 |
| Operating temperature range | 4° to 149° F (-20° to 65° C) |
| Warranty | 3 years |
| Audio | |
| Amplifier class | Class D |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD) | 40 W x 4/100 W x 2 (Bridged) |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD) | 50 W x 4 |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Greater than 70 dB |
| Frequency response (+0, -1dB) | 20 Hz-20 kHz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Current consumption (Standby) | Less than 1mA |
| Current consumption (Idle) | Less than 700-750mA |
| Fuse rating | 35A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Input under/over voltage Over temperature Output short circuit |
What's in the Box:
- 4 channel amplifier with BLUETOOTH technology
- Remote controller
- Surface mounting cup with four mounting screws
- Four amplifier mounting screws
- Flush mounting kits
- Flush mounting template for the remote controller
- Waterproof gasket for the remote controller
- Documentation
Specifications
Item number: 010-03431-00
UPC: 729218924549
Package weight: 4.80 lb
