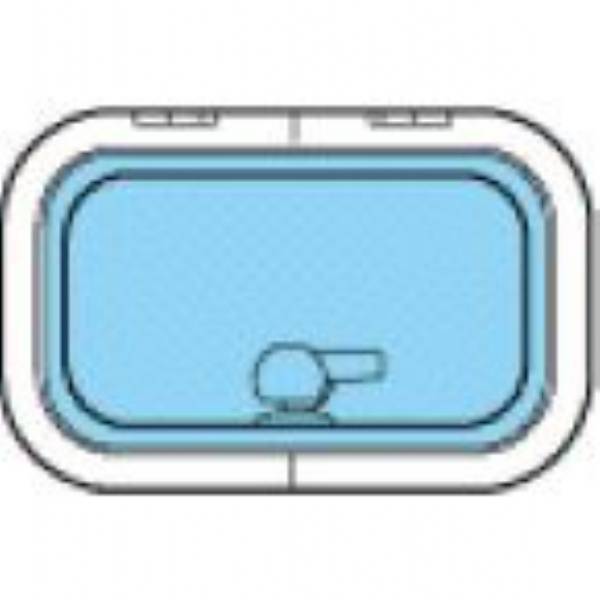

LEWMAR Size 20 Low Profile Hatch Flange Base
Item: 39920030
This item is brand new
$315.95
Request price match
This item ships within 1 day
wi|sw|wi
This item is brand new
$315.95
Request price match
This item ships within 1 day
wi|sw|wi
Features
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 4.9 | 5/16 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
| 10 11/16 | 16 7/16 | 1 | 2 7/8 | 7 15/16 | 13 11/16 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications
Item number: 39920030UPC: 743683107078
Package weight: 7.00 lb
