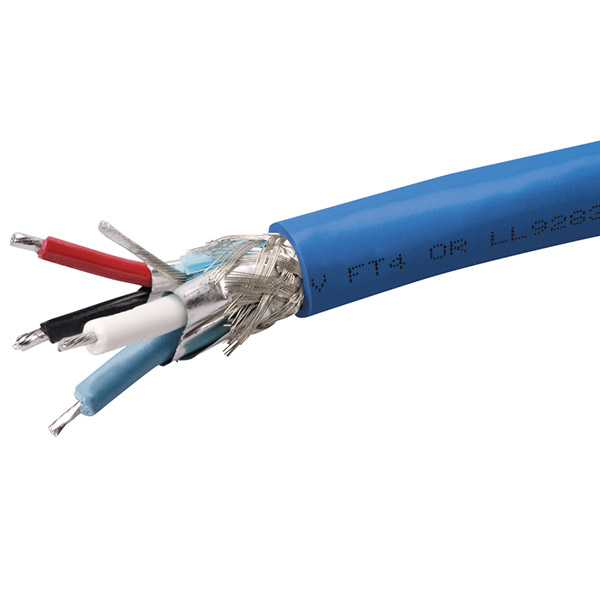

MARETRON Mid Bulk Cable - 100 Meter - Blue

Item: DB1-100C
This item is brand new
$728.58
Request price match

This item ships within 2 days
ge|cw|sw|ge

Contents of the package

Specifications

Overall

Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1

Insulation Material: PE (data wires), PVC (power wires)

Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

Power Pair

Wire: 2x16 (1.29mm) AWG

Resistance/Conductor: 4.1 Ohms/1000 ft max

Max Amperage: 14 Amps

Color Code: Red/Black

Data Pair

Wire: 2x20 (0.81mm) (AWG)

Characteristic Impedance: 120 Ohms +/- 10%

Capacitance: 10.75 pF/ft

Color Code: White/Blue

Approvals

UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 Approved

IEC: IEC-61162-3

Item number: DB1-100C
UPC: 873804003023
Package weight: 25.3 lb
