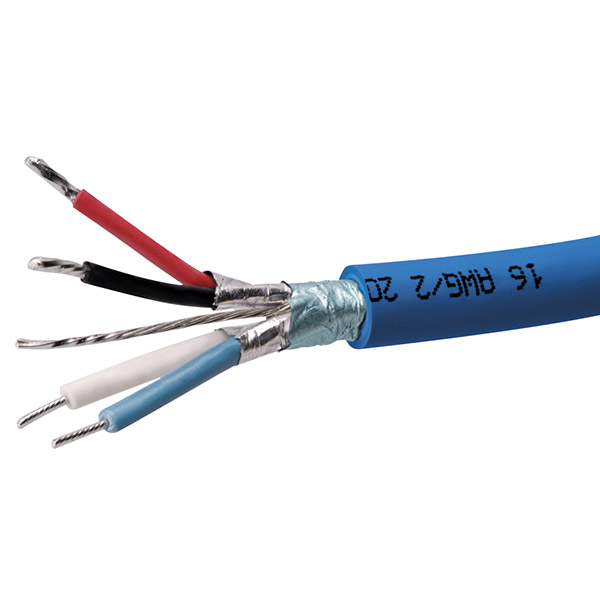

MARETRON Mini Bulk Cable - 100 Meter - Blue

Item: NB1-100C
This item is brand new
$1,059.63
Request price match

This item ships within 2 days
ge|cw|sw|ge

Contents of the package

Maretron Mini Bulk Cable - 100 Meter - BlueSpecifications

Overall

Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1

Insulation Material: PE (data), PVC (power)

Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire

Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

Power Pair

Wire: 2x15 (1.45mm) AWG

Resistance/Conductor: 3.44 Ohms/1000 ft max

Max Amperage: 16 Amps - NB1, 14 Amps - NG1

Color Code: Red/Black

Data Pair

Wire: 2x18 (1.02mm) AWG

Characteristic Impedance: 120 Ohms +/- 10%

Capacitance: 12 pF/1000 ft Max

Color Code: White/Blue

Approvals

UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 APPROVED

IEC: IEC-61162-3

Item number: NB1-100C
UPC: 873804003047
Package weight: 38 lb
