NAVICO B75H 20,deg- Bronze Thru-Hull CHIRP XSONIC 9-Pin

Item: 000-16191-001
This item is brand new
$610.95

Qty:
Backorder, ships in 3 - 4 weeks
cw|cw
Ask a question   Tell a friend



Features

B75H 20° Bronze Thru-Hull CHIRP XSONIC 9-Pin

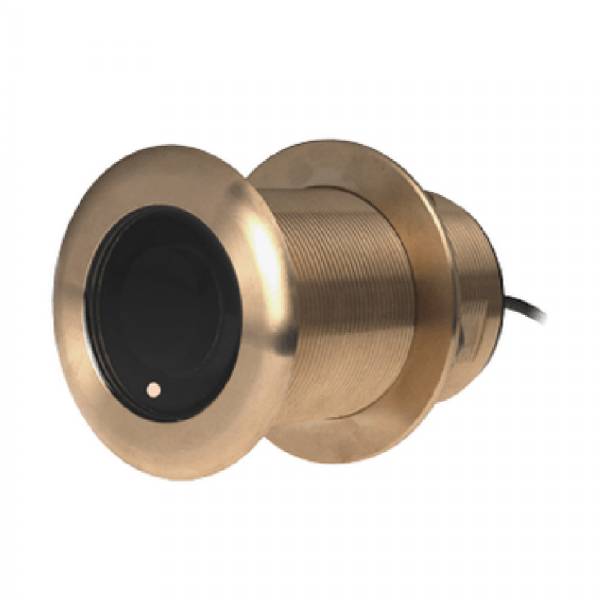

The B75H is a bronze, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:

  • CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
  • Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
  • Easy To Install
  • High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
  • Highly Accurate - Provides extremely accurate data
  • 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise
  • Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull
  • Plug & Play Connection - Easily connect to NSS, NSE, NSO or Lowrance



Specifications

Item number: 000-16191-001
UPC: 9420064132171
Package weight: 6.16 lb

List of Compatible Units:

SIMRAD NSX 3012UW Combo w/Active Imaging 3-in-1 Transducer
SIMRAD NSX 3015UW Combo w/Active Imaging 3-in-1 Transducer



Note: Displayed are products sold in gps4us store.
There might be more GPS units compatible with chosen accessory.
