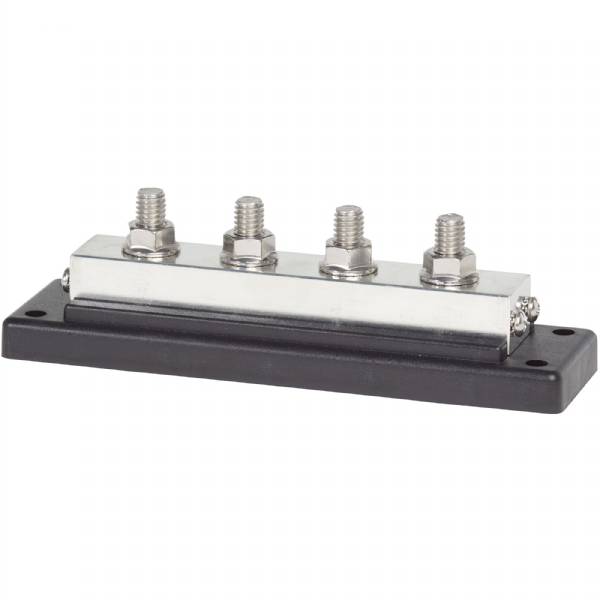

NEWMAR Blue Sea PowerBar 600A BussBar 4 3/8 in - 16 Studs
Features
Blue Sea PowerBar 600A BusBar - Four 3/8"-16 Studs
Model: 2104-BSSSpecifications
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | 3/8"-16 Stud |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 545A AC 600A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110/UNS11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Stud Torque | 140 in-lb (15.82 Nm) |
| 140 in-lb (15.82 Nm) | 1.71lb (0.78 kg) |
Specifications
Item number: 2104-BSSUPC: 632085021047
Package weight: 1.75 lb
