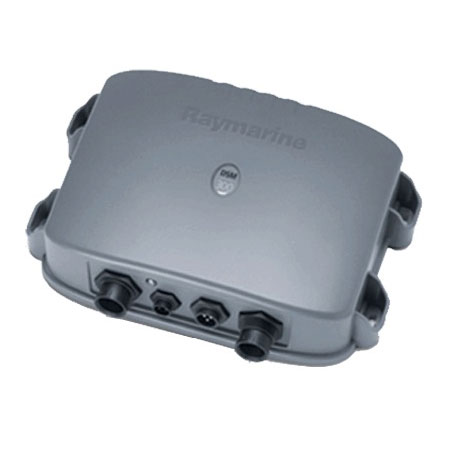

RAYMARINE DSM300G Sounder Module 6/1KW 50/200KHz
Item: E63069
This item is brand new
$699.99
This item ships within 4 days
This item is brand new
$699.99
This item ships within 4 days
Cables
Sensors and Boards
E66072
Spd Temp Brnze Lo-Pro Transducer DSM30/300
Spd Temp Brnze Lo-Pro Transducer DSM30/300
No Longer Available
E66019-ST69-RAY
Spd/Temp Snsr Transom Mnt DSM30/300
Spd/Temp Snsr Transom Mnt DSM30/300
No Longer Available
Transducers Raymarine
A102121
SS270W-RAY 1kW 200/50kHz,Cone 25, Thru-Hull,Transducer
SS270W-RAY 1kW 200/50kHz,Cone 25, Thru-Hull,Transducer
No Longer Available
E66084
TM258-RAY 50/200KHz /T 1KW transom DSM300
TM258-RAY 50/200KHz /T 1KW transom DSM300
No Longer Available
A102122
SS260-RAY DT Cone 19/6 1kW 200/50KHz Radar conn Steel Transducer
SS260-RAY DT Cone 19/6 1kW 200/50KHz Radar conn Steel Transducer
No Longer Available
Also available
Contents of the package
DSM300 sounder module
Interconnect cables
Instruction manual
Interconnect cables
Instruction manual
Features
DSM300 Sounder ModuleFor C, E and G-Series Multifunction Displays
The DSM300 features the popular hsb-2 interface for the C-Series Classic multifunction displays and legacy Pathfinder
units. It also utilizes state-of-the-art SeaTalk-hs to connect to e95, e125, E & C-Series Widescreen units, and the
G-Series system. The DSM300 is designed to operate on 12 or 24 VDC systems.
Additional Features:
Dual frequency operation (200/50 kHz)
600 or 1,000 watt available output power (selected by transducer)
HD Digital Auto Adaptive Gain control (no adjustment required)
Patent Pending Digitally Adaptive Transmitter Receiver with infinite receiver bandwidth settings and digital filter
A-Scope (Real-Time Display): Split second real time representation of fish and bottom features passing through the
beam of your transducer right now, the history of your A-Scope is represented in the standard sounder image
scrolling across your screen.
Zoom Display: Auto or manual zoom magnification of any part of the 200 or 50 kHz fishfinder screen image, (X 2, X4
or X6 magnification).
Bottom Lock: The bottom lock feature, shows the bottom as a straight line, in order to help you detect fish close
to the bottom and remove wave action from the fishfinder image.
White Line: The White line feature helps distinguish between fish and the bottom, when fish are swimming close to
the bottom.
Specifications
Power 600 or 1,000 Watts, transducer dependentFrequency 50/200 KHz
Transducer Sold separately
Alarms Shallow, deep, fish
Interface hsb-2 for C-Series Classic; SeaTalk-hs for E-Series and C-Series Widescreen
Other Functions Speed/temp (with appropriate sensor)
Dimensions 10.7" x 7.4" x 2.4"
Waterproof Yes (CFR-46 & IPX6)
Warranty wo years, with one year extension after on-line registration
Item number: E63069
UPC: -
Package weight: 5.5 lb
