RAYMARINE RNS-5 Network Swtich

Item: A80731
This item is brand new
$344.95
Rebate available
Save up to $3,000 When you Upgrade Qualifying Raymarine Products
Exp: 7/7/2024

Current rebate available:

Save up to $3,000 When you Upgrade Qualifying Raymarine Products

Must be purchased before 7/7/2024

You can find the rebate form on manufacturer's website or you can request it by email [email protected]

Request price match

Qty:

This item ships within 1 day
wi|cw|sw|wi|ln
Ask a question   Tell a friend


Description

Features

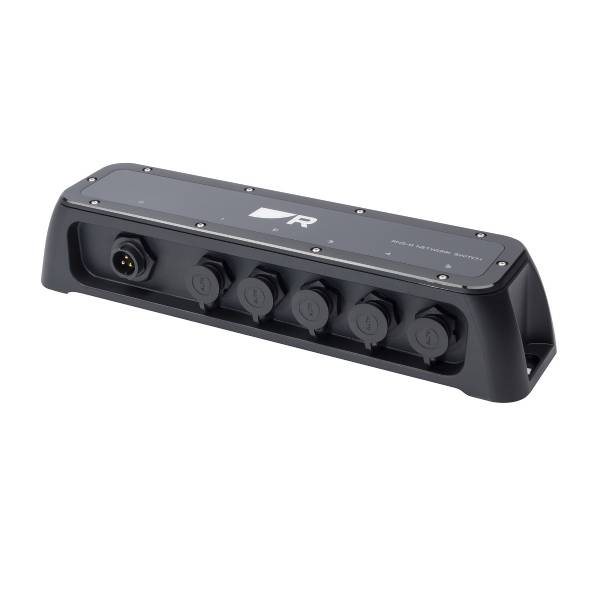

Raymarine RNS-5 5 Port raynet netwoek Switch

Model: A80731
  • 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
  • Rugged IPX6 and IPX7 construction
  • Reliable, waterproof RayNet connector Ethernet cable ports
  • Designed for simple bulkhead mounting
  • LED power and network port status indicators
  • Unmanaged- simply plug and play with Raymarine devices
  • No complicated setup or confi guration

The RNS-5 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.

Specifications
POWER SPECIFICATION
Nominal supply voltage12 or 24 V dc
Operating voltage range9 to 32 V dc
Power Consumption<2.5 watts <600mA @12V
ENVIRONMENTAL SPECIFICATION
Operating temperature range-25°C (-13°F) to + 55°C (131°F)
Storage temperature range-30°C (—22°F) to + 70°C (158°F)
Humidityup to 93% @ 40°C (104°F)
Water ingress protectionIPx6
PHYSICAL SPECIFICATION
Dimensions (w x h x d)286 mm (11.26 in) x 69 mm (2.72 in) x 55 mm (2.17 in)
Weight.36 Kg (.79 lbs)
NETWORK
ProtocalsRayNet Ethernet. Legacy SeaTalkHS using an adaptor cable
Connection Speed1 Gigabit
Number of Ports5



Specifications

Item number: A80731
UPC: 723193845912
Package weight: 2.00 lb
