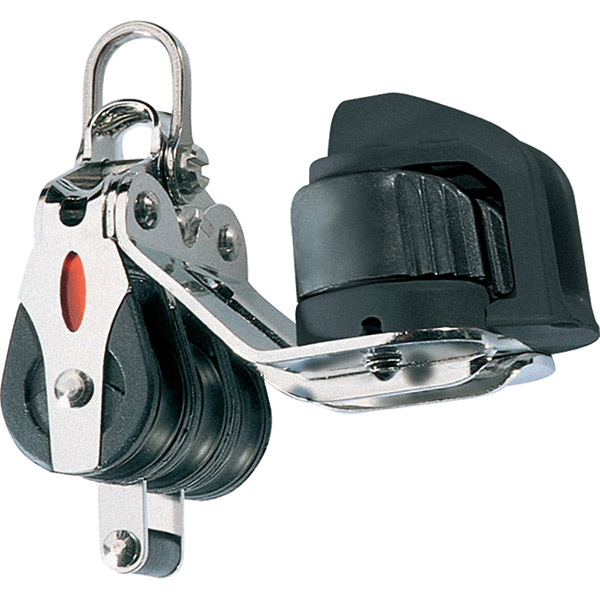

RONSTAN Series 20 ball bearing block - triple - becket - cam cleat - 2-axis shackle head

Item: RF20332
This item is brand new
$87.35

Qty:
Backorder, ships in 3 - 4 weeks
cw|cw
Ask a question   Tell a friend



Contents of the package





Features

Series 20 Ball Bearing Block - Triple - Becket - Cam Cleat - 2-Axis Shackle Head

Features:
  • Low friction
  • High static and dynamic load capacity
  • Lightweight
  • Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
  • Two-Way head can be fixed at 0° or 90°


Applications:
  • Dinghy control lines
  • Dinghy vangs
  • Cunninghams
  • Traveller controls


Materials:
  • Stainless steel ball bearings
  • UV Stabilized Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fiber reinforced Nylon cheeks


Specifications:
Sheave Ø:20mm(3/4")
Max. Rope Ø:6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.:400kg(880lbs)
B. L.:850kg(1,870lbs)
Weight:122g(4.3oz)

*Line Load through cleat not to exceed 125kg(275lbs)


Specifications




Item number: RF20332
UPC: 9316800255764
Package weight: 0.25 lb
