STANDARD HORIZON VHF, Matrix AIS/GPS, 30W Hailer, Black

Item: GX2200B

This Item is Brand New
$336.95
|cw|sw


	Accessories Maps Description Videos Reviews Product Series Compatible With

Contents of the Package

    Matrix AIS/GPS VHF (black)
    Mounting bracket and installation hardware
    Power cord
    Owner's manual

Features

Standard Matrix AIS/GPS VHF in Black

Fixed Mount Class D DSC VHF with integrated 66 channel GPS, two channel AIS, 30W PA/Hailer and RAM+ Mic option with intercom

Integrated AIS and GPS, 4800 and 38400 baud rate selections (Allows connection to GPS Chart Plotter with 1 NMEA IN/OUT), selectable True and Magnetic readings for AIS target and PA/FOG simultaneous operation with AIS display, GPS status page

The GX2200 MATRIX AIS/GPS, features a 66 channel WAAS GPS antenna integrated into the front panel of the radio, now there is no need to hassle with wiring the radio to a GPS for DSC (Digital Selective Calling) or AIS (Automated Identification System). Out of the box and ready to go, acquiring AIS and AIS SART targets, DSC calling, position sharing, waypoint navigation, and navigation to DSC distress calls can all be performed with just a few simple steps. The MATRIX AIS/GPS displays AIS target information (MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG) allows you to contact an AIS Ship directly

    Integrated 66 Channel WAAS GPS antenna
    Integrated dual channel AIS (Automatic Identification System) receiver
    AIS / AIS SART target display
    4800 or 38400 NMEA baud rate selection, for plotters with 1 NMEA port
    True and Magnetic bearing selection on AIS display
    Contact Class A or B AIS Ship with DSC
    Programmable CPA or TCPA collision avoidance alarms
    Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)
    Submersible IPX7 (3.3 feet or 1 meter for 30 minutes) front panel
    80dB Commercial grade receiver
    DSC position request and report functions
    30 Watt PA/Loud Hailer with preprogrammed fog signals and listen back
    ClearVoice noise canceling speaker microphone with channel selection and 16/9 key
    GPS Compass, Waypoint and GPS status pages
    Navigation (LAT/LON, Time, SOG and COG) information shown on display
    Enter, Save and Navigate to waypoints with Compass page
    Oversized rotary channel knob with push to enter, backlit display and keys
    Local/Distance attenuator
    Optional connection for RAM3 second station remote microphone with AIS display
    Intercom between radio and RAM3
    Voice Scrambler (optional)

Specifications

The specified price is for: 1 item

Display                3" diagonal full dot matrix LCD
Control Type   Rotary knob for channel change. programmable soft keys
Power      25 Watts, 1 Watt
Remote Options    Single connector for full-function RAM3 Mic
Interface      NMEA 0183 in/out; NMEA 0183 HS for AIS data
Other Functions     Built-in 66 channel GPS, two channel AIS receiver; waypoint storage and navigation
                           display; 30 Watt loudhailer/fog horn (speaker required); optional voice scrambler and
                           speaker microphone
Dimensions           3.1"H x 7.1"W x 6.3"D
Warranty              Three Year

Manufacturer: STANDARD HORIZON
Manufacturer Number: GX2200B
Item number: GX2200B
UPC: 788026140862
Shipping weight: 5 lb

Other Products in the Series:

	STANDARD HORIZON Commercial Handheld VHF w/ LMR Channels	Add to comparison
	STANDARD HORIZON GX1200B Eclipse DSC Ultra Compact Class D VHF - Black	Add to comparison
	STANDARD HORIZON GX1200W Eclipse DSC Ultra Compact Class D VHF - White	Add to comparison
	STANDARD HORIZON GX1300B Eclipse Ultra Compact Fixed Mount VHF - Black	Add to comparison
	STANDARD HORIZON GX1300W Eclipse Ultra Compact Fixed Mount VHF - White	Add to comparison
	STANDARD HORIZON GX1600B Explorer Ultra Compact Class D DSC- Black	Add to comparison
	STANDARD HORIZON GX1700B GPS Fixed Mount VHF - Black	Add to comparison
	STANDARD HORIZON GX1700W GPS Fixed Mount VHF - White	Add to comparison
	STANDARD HORIZON Handheld UHF, Commercial	Add to comparison
	STANDARD HORIZON HX150 5W Floating Handheld VHF	Add to comparison
	STANDARD HORIZON HX290 Floating Handheld VHF Radio	Add to comparison
	STANDARD HORIZON HX400 w/Built-In Scrambler and LMR Programmable Channels	Add to comparison
	STANDARD HORIZON HX870 6W Floating Handheld VHF Radio w/Integrated GPS	Add to comparison
	STANDARD HORIZON VHF, Eclipse DSC and (blk), 8ft Ant, SS Mount	Add to comparison

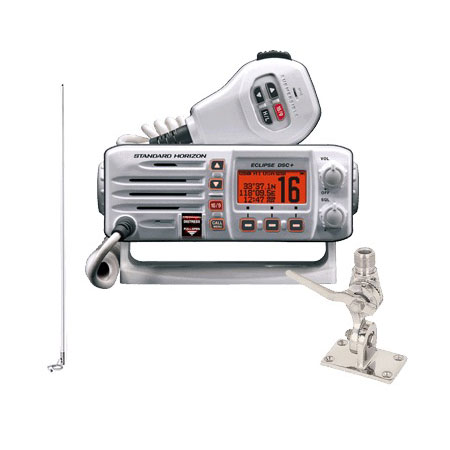

	STANDARD HORIZON VHF, Eclipse DSC and (wht), 8ft Ant, SS Mount	Add to comparison
	STANDARD HORIZON VHF, Explorer, Optional Remote, White	Add to comparison
	STANDARD HORIZON VHF, Matrix AIS/GPS, 30W Hailer, White	Add to comparison
	STANDARD HORIZON VHF, Matrix, w/Hailer, Opt Remote, Black	Add to comparison

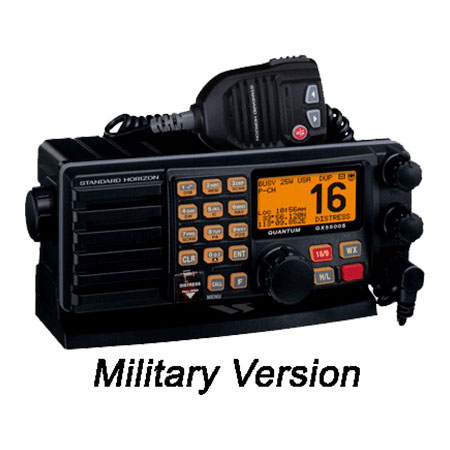

	STANDARD HORIZON VHF, Quantum Military, w/Kpd, Hailer	Add to comparison
