VDO Marine 3-3/8 inch (85 mm) ViewLine Rudder Angle Indicator -45,deg-/ plus 45,deg- - 8 to 32V - White Dial and Bezel

Features

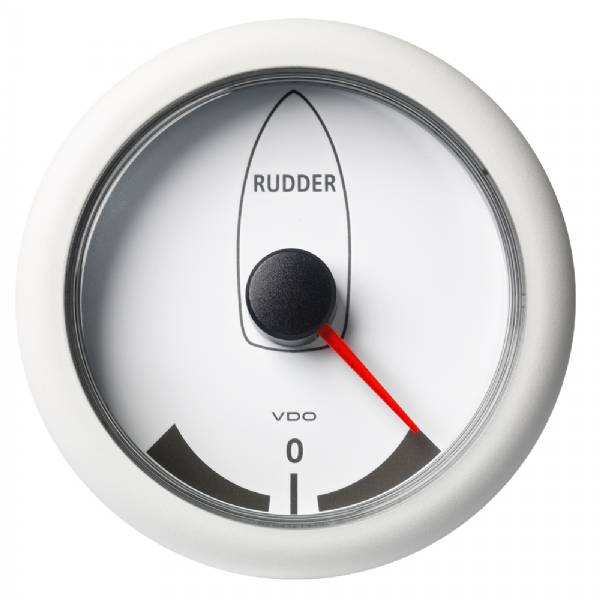

3-3/8" (85 mm) ViewLine Rudder Angle Indicator -45°/+45° - 8 to 32V - White Dial & Bezel

The Viewline rudder angle instrument for wheel-controlled yachts and pleasure boats displays the current rudder position at all times. This indicator makes it easier to navigate out of harbors or through locks.

Only rudder instruments of the same diameter can be combined.

Specifications:

• 8 and 14 pole Tyco / Hirschmann bush housing
• Operating voltage 8 – 32 V
• Accuracy +/- 2.5 % of full scale reading
• Anti-fog double lens
• Protection rating front IP67, rear IP52
• 85 mm installation diameter
• 50 mm installation depth
• Operating temperature range -20 °C / +70 °C
• Reverse polarity protection
