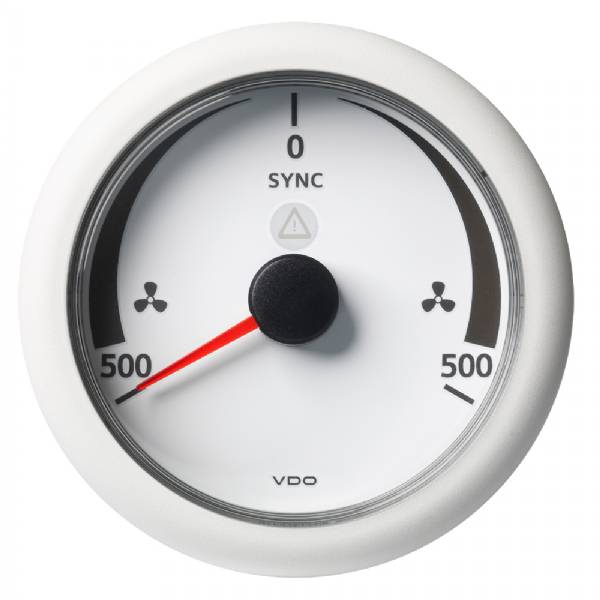

VDO Marine 3-3/8 inch (85 mm) ViewLine Synchronizer -500/ plus 500 RPM - 8 to 32V - White Dial and Bezel

Features

3-3/8" (85 mm) ViewLine Synchronizer -500/+500 RPM - 8 to 32V - White Dial & Bezel

On pleasure boats with twin engine installations, the ViewLine synchronizer is an indispensable aid to ensure correct synchronized running of both units.

Specifications:

• 8 and 14 pole Tyco / Hirschmann bush housing
• Operating voltage 8 – 32 V
• Accuracy +/- 2.5 % of full scale reading
• Anti-fog double lens
• Protection rating front IP67, rear IP52
• 85 mm installation diameter
• 50 mm installation depth
• Operating temperature range -20 °C / +70 °C
• Reverse polarity protection
