FURUNO Autopilot, Small Control Head, Inboard

Ask a question   Tell a friend

This Item is Brand New
Request Price Match
Extended Wty:none 1 yr.$239.50 2 yr.$359.25

sw|cw|sw|wi Check Shipping Cost

Contents of the Package

    NAVpilot 711c Control Head w/ 15 meter cable
    Proccessor Unit
    Rotary Rudder Reference w/ 15 meter cable
    PG700 Heading Sensor w/ 6 meter cable
    Installation hardware
    Owner's manual



Oversized air

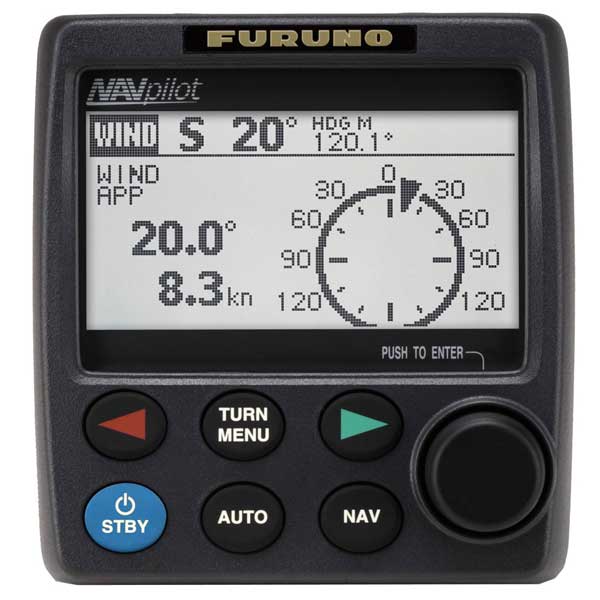

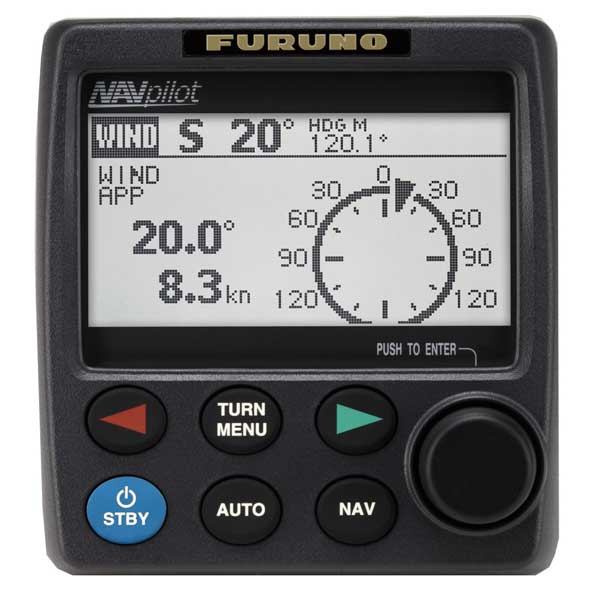

Navpilot 711c Inboard Autopilot System, MFG NAVPILOT 711C, 4inch color display, 4.5inchW x 4.3inchH control head, 12/24 VDC, rotary control knob. System includes control head, processor, rotary feedback, and rate compass. Hydraulic pumpset sold separately.

Kick back, relax and let NavPilot steer you to your destination!

FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.

The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.

Self-learning and adaptive software

From the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.

SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering Control

The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.

The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.

If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.

FishHunter mode

FishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.

PG700 Integrated Heading Sensor, NMEA 2000
The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts
of your ship's heading. These sophisticated components are contained within
a rugged, compact case. Unique design elements make the PG-700 virtually
maintenance-free and easy to install. The PG-700 heading sensor detects
terrestrial magnetism and produces compass data that can be utilized in CAN
bus network.

    Angular velocity sensor and magnetic bearing sensor incorporated
    Automatic determination of installation site suitability
    L-shaped mounting base for mounting on bulkhead
    Output of magnetic bearing data to FURUNO CAN bus device


Vessel                    Sail or power
Steering Type          Hydraulic or solenoid
Display                   4" diag. color LCD
Control Type            Rotary knob and pushbuttons
Processor                FAP7002: 12 or 24 VDC, 50 Amp max.
Rudder Feedback     FAP6112 rotary
Compass                PG700 Fluxgate w/ rate gyro
Drive Unit               Sold separately
Remote Options       Up to 6 FAP700/711/720 control heads and/or remotes
Interface                 2 ea. NMEA 0183 in/out, NMEA 2000
Warranty                 Two Year

Item number: NAVPILOT 711C
UPC: 611679355102
Shipping weight: 24 lb
