GARMIN GHC20 Reman Autopilot Color Control Display

Item: 010-N1141-00
Ask a question   Tell a friend

Newly Overhauled
Request Price Match

wi|wi Check Shipping Cost

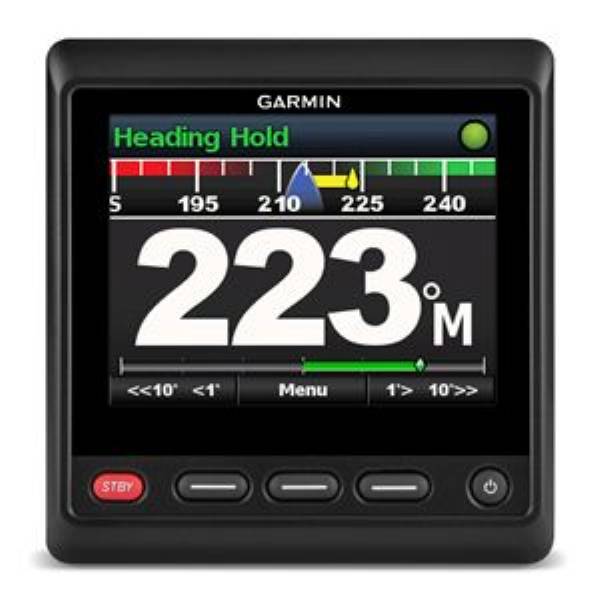

Garmin GHC™ 20 Marine Autopilot Control Unit - Remanufatured

Model: 010-N1141-00
  • Compatible with legacy Garmin autopilots as well as newer Garmin autopilots; can be controlled with quatix® marine watch
  • Large, bright 4-inch color glass-bonded display with anti-glare finish
  • Easy to read from a distance and 170 degree viewing angle
  • Enhanced night time readability with backlight dimmer and full color or new red/black or green/black color schemes
  • Enhanced daylight readability with new high-contrast color option

The GHC 20 autopilot helm controller is compatible with newer Garmin autopilots as well as legacy models on both power and sail vessels.

It's large, bright 4-inch color display is easy to read at a distance and 170 degree viewing angle. Glass-bonded anti-glare lens prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control.

An optional handheld wireless remote control is available; however, for the highest level of convenience, control the GHC 20 using quatix, the world’s first marine GPS navigation watch featuring ANT® wireless technology. Power is supplied by the NMEA 2000® network. Included are 2 trim snap piece cover options which allow you to match the GHC 20 with the new GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.

Unit dimensions, WxHxD4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)
Display resolution, WxH320 x 240 pixels
Display typeQVGA color LCD display
NMEA outputNMEA 0183, NMEA 2000®
Supply voltagePowered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC
Operating temperature-15° C to 70 C° (5° F to 158° F)
Max power consumption3W
Viewing angle170°
Brightness1200 cd/m2 (NIT)
Water ratingIPX7
NMEA 2000 LEN (Load Equivalency Number)7 (350 mA at 9VDC)

What's in the Box:
  • GHC™ 20 - Remanufactured
  • Black trim piece snap cover
  • Protective cover
  • Flush mount gasket and hardware
  • NMEA 2000 drop cable
  • NMEA 2000 T-connectors and terminators
  • Documentation

  • Specifications

    Item number: 010-N1141-00
    UPC: -
    Shipping weight: 1.58 lb
