HUMMINBIRD Fishfinder 541 5 inch Mono Dual Beam
Cables

720003-1
EC W10 Transducer Ext. Cable, 7 pin, 10 ft
EC W10 Transducer Ext. Cable, 7 pin, 10 ft
No Longer Available

720003-2
EC-W30 30 ft Transducer Extension cable
EC-W30 30 ft Transducer Extension cable
No Longer Available
Cases and Covers

406900-1
PTC U Portable Soft Sided Case w/Battery, Charger
PTC U Portable Soft Sided Case w/Battery, Charger
No Longer Available
Mounts

740077-1
MS-M, Quick disconnect mount system, MFG 740077-1
MS-M, Quick disconnect mount system, MFG 740077-1
No Longer Available
Marine Networking

720002-1
PC10 Power Cable
PC10 Power Cable
No Longer Available
Sensors and Boards

730000-1
TS-W Temp/Speed Sensor
TS-W Temp/Speed Sensor
No Longer Available
Transducers Humminbird

710161-1
P72 XPT 9 20 T Depth transducer w temp
P72 XPT 9 20 T Depth transducer w temp
Out of stock

710166-1
XTH 9 20 Depth transducer
XTH 9 20 Depth transducer
No Longer Available

710167-1
XTH 9 20 P Depth transducer
XTH 9 20 P Depth transducer
No Longer Available

710181-1
XFM 9 20 Depth transducer
XFM 9 20 Depth transducer
Out of stock

710214-1
XNT 9 20 Depth Transducer, MFG 710214-1, 83 200KHz, 6020 beam angle
XNT 9 20 Depth Transducer, MFG 710214-1, 83 200KHz, 6020 beam angle
No Longer Available

710196-1
83/200KHz D/T Stick-On Mnt Transducer 7 pin
83/200KHz D/T Stick-On Mnt Transducer 7 pin
No Longer Available
Other

406900-1NB
PTC U NB Portable Soft Sided Case
PTC U NB Portable Soft Sided Case
No Longer Available
Contents of the package
541 Display
Transom mount transducer
Mounting bracket
Installation hardware
Owner's manual
Features

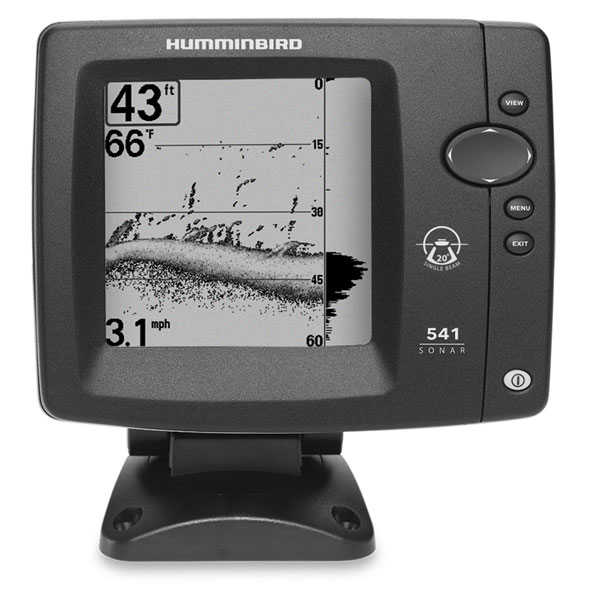

Humminbird 541 Fishfinder5" Monochrome Dual Beam Sonar
Building on our legacy of sonar innovation, exclusive Humminbird® SwitchFire™ puts anglers in complete command of how their sonar returns appear. With two unique display modes, you can adjust to your fishing conditions on the fly. Add or
remove detail; account for water depth, temperature and turbulence; even experiment with lure presentations—all at the
push of a button. SwitchFire adds a whole new dimension to 2D fish-finding. It’s one more reason Humminbird is simply,
clearly, better.
With Dual Beam Sonar, two beams combine for great detail and a wide coverage area. Use the narrow beam for
high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
Humminbird's Exclusive Quick Disconnect Mounting System allows you to easily remove your unit for storage at the end of
the day and re-install the next morning.
Specifications
Display 5" diag. 12 level grayscale LCDResolution 240 x 240 pixels
Power 500 Watts
Frequency 83/200 KHz dual beam
Transducer Transom mount transducer included
Alarms Depth/fish
Other Functions None
Dimensions 6.75"W x 5.4"H x 1.25"D
Warranty One Year
Item number: 409700-1
UPC: 082324045578
Package weight: 3.5 lb
