RAYMARINE T3 Hydrualic Reman Linear 24v Drive

Item: M81203R
Ask a question   Tell a friend

Newly Overhauled
$1,998.95
Request Price Match


wi|wi Check Shipping Cost

Features

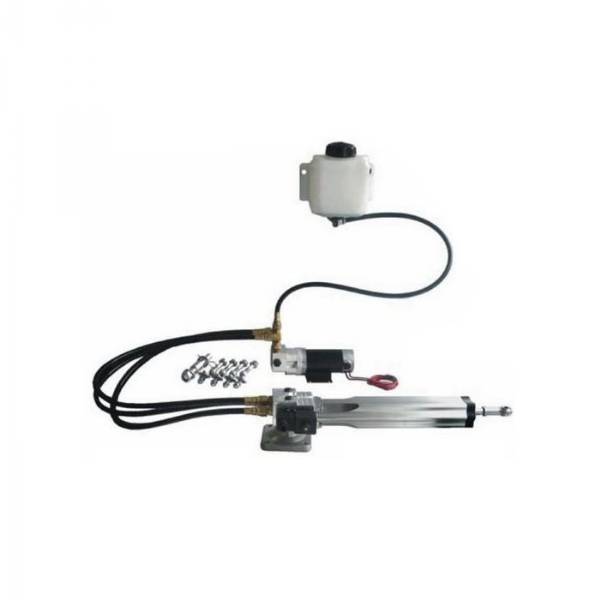

Raymarine M81203R Type 3 24v Hydraulic Linear Drive - Remanufactured

Model: M81203R

Designed for larger mechanically steered vessels over 20,000kg, our hydraulic linear drives are self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.

A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required. Must be able to back drive steering system for the rudder.

Specifications
Maximum boat displacement35,000 kg
Peak thrust1,200 kg
Maximum stroke300 mm
Hard-over to hard-over times10 seconds
Maximum rudder torque3,200 Nm
Corepack usedACU-400



Specifications

Item number: M81203R
UPC: -
Shipping weight: 25.00 lb
