LOWRANCE HDS 12 Gen2 Touchscreen Chartplotter/Fishfinder 83/200 TRANSDUCER

Item: 055-10776-001
Newly Overhauled


This item ships within 2 days

Ask a question   Tell a friend

Marine Networking
Sensors and Boards
Transducers Lowrance
Transducers Navico
Compatible maps

Suggested Maps and Software:

Navionics Marine Charts

Navionics Marine Charts
Navionics charts are now a fundamental tool of navigation, featuring water depths, navaids, obstructions, and other information necessary for safe navigation. Marine and lake maps presented.

Lowrance Maps Topo

Lowrance Maps Topo
TOPO Insight HD maps are used with all-terrain vehicles, snowmobiles, etc., for off-road navigation.

Lowrance Maps Nautic Lake

Lowrance Maps Nautic Lake
Nautic insight NEW! Improved Bathymetric Contour Detail with greater coverage and more accurate detail to navigate more safely and identify key fishing areas

C-Map MAX-N+

C-Map MAX-N+
C-MAP MAX-N+ brings trusted C-MAP data and advanced charting features to users of compatible Lowrance, Simrad and B&G navigation systems.


New C-MAP MAX-N cartography gives Lowrance, Simrad and B&G customers access to accurate, up-to-date C-MAP chart data trusted by navigators around the globe. C-MAP MAX-N opens up a new world of performance for cruisers, sailors and fishermen, providing the detail, advanced features and coverage to fuel every boating adventure.

Cmor maps

Cmor maps
CMOR Mapping data is the result of methodical surveys with high-resolution echosounders. There is no interpolation, no guesswork, and no unverified "hotspots" reported by local captains. All you see is a complete, accurate, and highly detailed representation of the bottom, including many features that are not shown on any other chart or fishing map

Contents of the package

Dimensions    12.91"W x 8.83"H x 3.75"D; Wt: 8.3 lbs

 In the Box:

    83/200KHz transom mount transducer
    Mounting bracket
    Sun cover
    Power cable
    Installation hardware
    Owner's manual and Quick Start guide

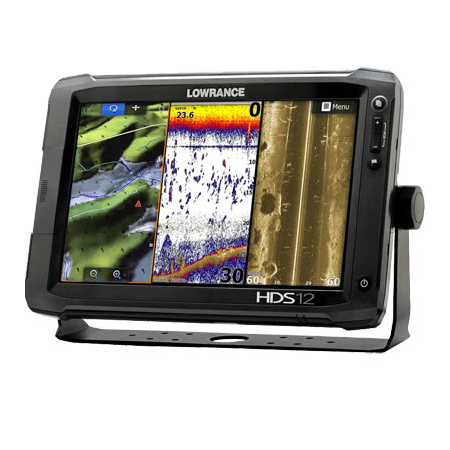

 Refurbished HDS-12 Gen2 Touchscreen Chartplotter/Fishfinder
12" Widescreen LCD, Insight USA (Coastal & Inland) Charts, w/83/200KHz Transducer

The new, Generation 2 Touch series of multi-function displays are a revolutionary step forward in fishfinding and navigation-electronics innovation. Featureing lightning-fast chart redraw, they combine the legendary, best-in-class Lowrance technology, fully integrated weather and radar solutions and an attractive case design that is more convenient to install. Plus, a new easier-to-use operating system simplifies access to frequently used (and more advanced) features, to enhance your boating pleasure and fishing success. For building an onboard system, HDS provides a truly advanced definition in multi-tasking compatibilities.

Personalized or built-in Insight mapping and optional Navionics® charts. View both at once in 3D perspective view, plus StructureMap™, Broadband Radar™ and SIRIUS® weather overlay capability. A super-accurate, internal GPS receiver comes standard on all HDS Gen2 Touch models, plus built-in Insight USA™ high-definition mapping with contour shading. 3D perspective view is also now available with both Insight USA maps and optional Navionics charts, plus a dual-view option allows you to simultaneously use two maps at once.

Built-in StructureScan™ HD sonar imaging, plus award-winning Broadband Sounder™ with DownScan Overlay™ and TrackBack™ feature. The ultimate fish- and structure-findingdisplay. Dedicated StructureScan HD signals for left-, right- and down-looking images, plus award-winning Broadband Sounder. Real-time StructureMap™ capability allows you to overlay StructureScan™ Sonar Imaging data onto your favorite chart for a life-like underwater view with greater perspective of your boat’s position to nearby structure. Overlay DownScan Imaging™ onto your BroadBand Sounder view for the ultimate fish-and
structure-finding display.

    Powerful touchscreen with redesigned menus and five push-button controls simplify
       operation without sacrificing features.
    Make your own map! Create high-definition contours, bottom hardness, and more from
       personalized sonar log recordings on a powerful, new Lowrance web-based map
       creation tool.
    Standard on all HDS® Gen2 Touch models, network and share data across all HDS
       displays for the ultimate flexibility and cost-savings. NMEA 2000®, NMEA 0183 and
       Ethernet-compatible with up to two Ethernet ports.
    Compatible with Broadband 4G™ and 3G™ Radar, LWX-1 SIRIUS® satellite radio and
       weather receiver, LGC-4000 external GPS antenna, SonicHub™ marine audio server ,
       AIS collision-avoidance system, engine interface cables, plus video camera inputs on
       9- and 12-inch models.
    Up to two waterproof SD card slots to load Insight™ HD, Navionics® map options, Fishing
       HotSpots PRO®, backup waypoints, routes, trails and settings, and createpersonalized
       Insight Genesis™ maps and StructureMap™ from recorded sonar log recordings.
    Available 2013! GoFree WiFi-1 module compatible via Ethernet, when combined with a
       GoFree Wireless  app provides remote viewing and control of HDS Gen2 Touch on the
       iPhone, iPad and Android devices.
    Supported by 5-Year Lowrance Advantage™ and two-year limited warranty


  12.1" diag. 16:9 touchscreen color LCD
   1280x 800 pixels; VGA
   Internal; external option
  Preloaded w/ Insight USA w/ contour shading. Optional Insight HD or Navionics Platinum
  on SD card (2 slots).
  Extensive mapping options – HDS Gen2 Touch includes built-in charts or bundled map options, and is compatible with the most expansive selection of cartography on the market. Options include Insight™ HD, Insight™ PRO, Insight Genesis™, Navionics®, C-Map Max-N, TOPO, and more. All charting options can be used with Insight Planner™ PC planning software. Visit the Insight Store for more details.
  5,000 waypoints; 200 routes; 12,000 trackpoints
  Built-in 50/83/200KHz conventinal sounder and 455/800KHz StructureScan sonar. Includes
  83/200KHz transom mount transducer.
   Available radar antennas include 2KW or 4KW radomes, 6KW open array, as well as a
   165mW, 19" FMCW broadband radome
 Ethernet (2 ports); NMEA 2000; NMEA 0183
Other Functions
    Options: Video input, Sonic Hub, Sirius WX/Audio, AIS, engine/fuel montoring, WiFi
    connectivity (2013)
Warranty    Two Year

Item number: 055-10776-001
UPC: -
Package weight: 9 lb
