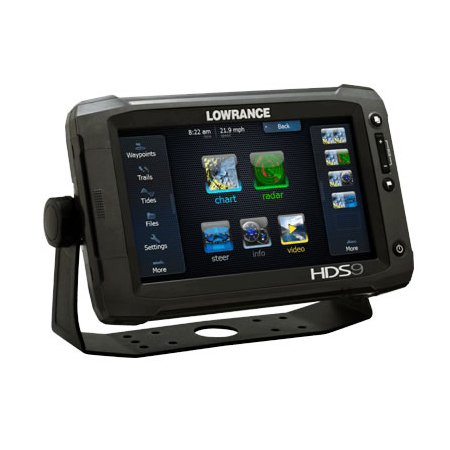

LOWRANCE HDS 9 Gen2 Touchscreen COBO 83/200
|
Item: 055-10771-001
|
|
Contents of the PackageDimensions 10.43"W x 6.65"H x 3.32"D; Wt: 4.6 lbs
In the Box:
HDS-9
83/200KHz transom mount transducer
Mounting bracket
Sun cover
Power cable
Installation hardware
Owner's manual and Quick Start guide
Features REFURBISHED HDS-9 Gen2 Touchscreen Chartplotter/Fishfinder
9" Widescreen LCD, Insight USA (Coastal & Inland) Charts, w/83/200KHz Transducer
The new, Generation 2 Touch series of multi-function displays are a revolutionary step forward in fishfinding and navigation-electronics innovation. Featuring lightning-fast chart redraw, they combine the legendary, best-in-class Lowrance technology, fully integrated weather and radar solutions and an attractive case design that is more convenient to install. Plus, a new easier-to-use operating system simplifies access to frequently used (and more advanced) features, to enhance your boating pleasure and fishing success. For building an onboard system, HDS provides a truly advanced definition in multi-tasking compatibilities.
Superior Navigation
Personalized or built-in Insight mapping and optional Navionics® charts. View both at once in 3D perspective view, plus StructureMap™, Broadband Radar™ and SIRIUS® weather overlay capability. A super-accurate, internal GPS receiver comes standard on all HDS Gen2 Touch models, plus built-in Insight USA™ high-definition mapping with contour shading. 3D perspective view is also now available with both Insight USA maps and optional Navionics charts, plus a dual-view option allows you to simultaneously use two maps at once.
Unlimited Sonar
Built-in StructureScan™ HD sonar imaging, plus award-winning Broadband Sounder™ with DownScan Overlay™ and TrackBack™ feature. The ultimate fish- and structure-finding display. Dedicated StructureScan HD signals for left-, right- and down-looking images, plus award-winning Broadband Sounder. Real-time StructureMap™ capability allows you to overlay StructureScan™ Sonar Imaging data onto your favorite chart for a life-like underwater view with greater perspective of your boat’s position to nearby structure. Overlay DownScan Imaging™ onto your BroadBand Sounder view for the ultimate fish-and structure-finding display.
Powerful touchscreen with redesigned menus and five push-button controls simplify operation without sacrificing features.
Make your own map! Create high-definition contours, bottom hardness, and more from personalized sonar log recordings on a powerful, new Lowrance web-based map creation tool.
Standard on all HDS® Gen2 Touch models, network and share data across all HDS displays for the ultimate flexibility and cost-savings. NMEA 2000®, NMEA 0183 and Ethernet-compatible with up to two Ethernet ports.
Compatible with Broadband 4G™ and 3G™ Radar, LWX-1 SIRIUS® satellite radio and weather receiver, LGC-4000 external GPS antenna, SonicHub™ marine audio server , AIS collision-avoidance system, engine interface cables, plus video camera inputs on 9- and 12-inch models.
Up to two waterproof SD card slots to load Insight™ HD, Navionics® map options, Fishing HotSpots PRO®, backup waypoints, routes, trails and settings, and create personalized Insight Genesis™ maps and StructureMap™ from recorded sonar log recordings.
Available 2013! GoFree WiFi-1 module compatible via Ethernet, when combined with a GoFree Wireless app provides remote viewing and control of HDS Gen2 Touch on the iPhone, iPad and Android devices.
Supported by 5-Year Lowrance Advantage™ and two-year limited warranty
Specifications
Display
9" diag. 16:9 touchscreen color LCD
Resolution
800x 480 pixels; VGA
Antenna
Internal; external option
Mapping
Preloaded w/ Insight USA w/ contour shading. Optional Insight HD or Navionics Platinum
on SD card (2 slots).Waypoints/Routes 5,000 waypoints; 200 routes; 12,000
trackpoints
Sounder
Built-in 50/83/200KHz conventinal sounder and 455/800KHz StructureScan sonar.
Includes 83/200KHz transom mount transducer.
Radar
Available radar antennas include 2KW or 4KW radomes, 6KW open array, as well as a
165mW, 19" FMCW broadband radome
Interface
Ethernet (2 ports); NMEA 2000; NMEA 0183
Other Functions
Options: Video input, Sonic Hub, Sirius WX/Audio, AIS, engine/fuel montoring, WiFi
connectivity (2013)
Dimensions 10.43"W x 6.65"H x 3.32"D; Wt: 4.6 lbs
Warranty
One year
Item number: 055-10771-001
UPC: -
Shipping weight: 5 lb |
