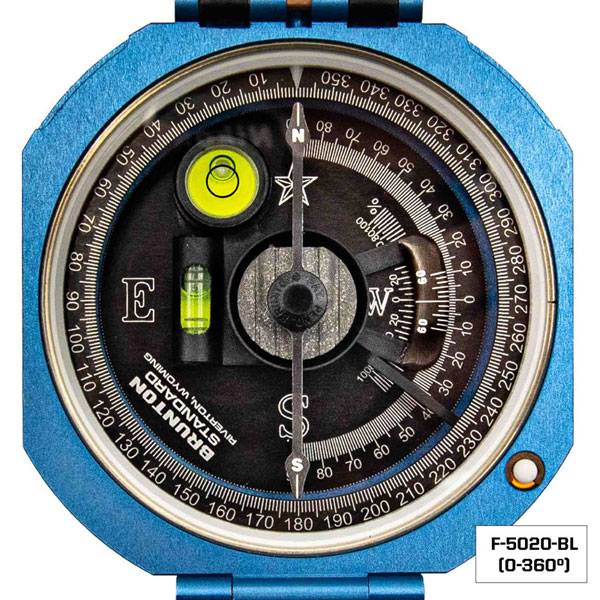

BRUNTON Compass F-5020 Blue Azimuth 0-360


Item: F-5020-BL
This item is brand new
$689.95
Request price match
Extended Wty:none 1 yr.$69.00 2 yr.$103.49

Qty:

This item ships within 5 days
br
Ask a question   Tell a friend


Description

Contents of the package

  • Compass
  • Stamped leather case



Features

  • Made in the USA in Riverton, Wyoming
  • Newly designed body is CNC-milled and hard-anodized for simplicity and durability.
  • The flat bottom with a non-slip silicon foot allows for low angle strike and dip measurements.
  • Unobtrusive bottle opener that stays out of the way until needed.
  • The mirror enables sighting and measurement of bearings and vertical angles.
  • Short and long sights give the user additional functionality and accuracy when shooting bearings.
  • The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.
  • Our magnetic needle can be balanced for use almost anywhere in the world.
  • Induction dampening makes for a quick-settling needle.
  • The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.
  • The needle lock button can lock or free the needle, depending on the model.
  • The internal components are sealed with an O-ring for improved water and dust resistance.
  • All transits are compatible with our Jacob’s Staff/Tripod ball and socket adaptor.
  • Each model is available in either Azimuth (0-360) or Quadrant (0-90) formats.
  • Each comes with a protective leather case, perfect for carrying your Brunton in the field.



    • Specifications

  • MEASUREMENT STYLE: Strike & Dip
  • DIMENSIONS (CLOSED): 3.2 x 2.8 x 1.3 in | 8.0 x 7.1 x 3.4 cm
  • WEIGHT: 7.0 oz | 197 g
  • AZIMUTH: 1˚ graduations w/± 0.5˚ accuracy
  • INTERNAL CLINOMETER: 1˚ graduations w/ ± 0.5˚ accuracy
  • PERCENT GRADE: 5% graduations
  • DECLINATION ADJUSTMENT: ± 180˚


    • Item number: F-5020-BL
    UPC: 080078921025
    Package weight: 1 lb
