BRUNTON Miners D-Light Transit Compass F-5041 Quadrant 0-90
Contents of the package
- Compass

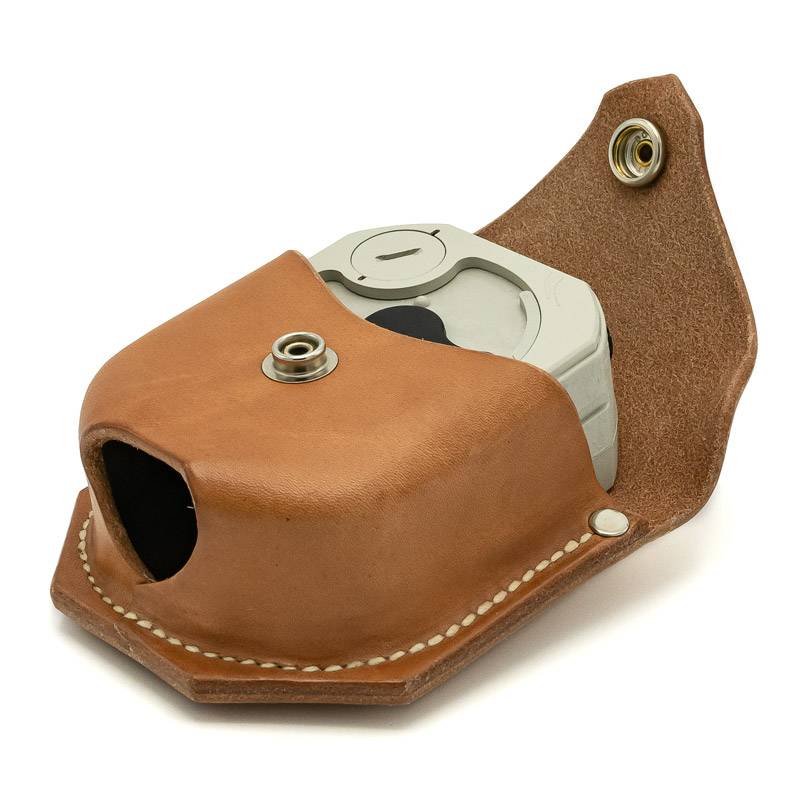

- Stamped leather case
Features

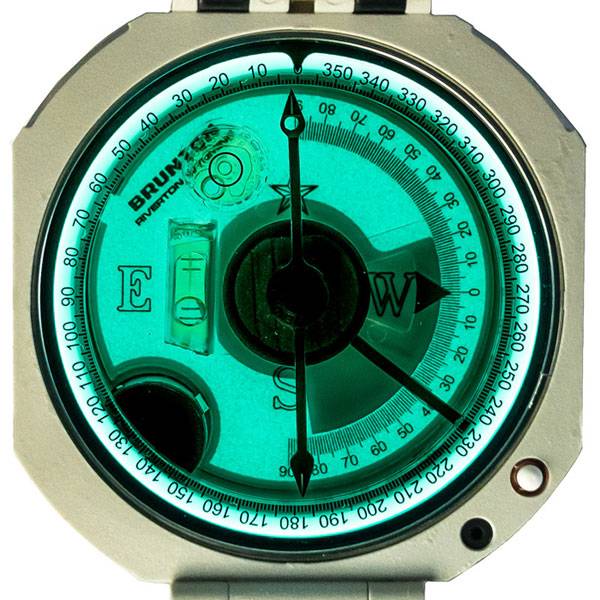

Push and release button activates 60-second illumination cycle.Electroluminescent panels illuminate azimuth ring, baseplate, and bubble levels.
Powered by a non-magnetic, easy-to-source 3V battery.
Contains no radioactive materials.
Needle is easy to identify and read in all light conditions.
Traditional transit measurement method.
Same light and tough composite body as the ComPro transit.
The mirror enables sighting and measurement of bearings and vertical angles.
Short and long sights give the user additional functionality and accuracy when shooting bearings.
The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.
Our magnetic needle can be balanced for use almost anywhere in the world.
Induction dampening makes for a quick-settling needle.
The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.
The needle lock button can lock or free the needle, depending on the model.
The internal components are sealed with an O-ring for improved water and dust resistance.
All transits are compatible with our Jacob’s Staff/Tripod ball and socket adaptor.
Each model is available in either Azimuth (0-360) or Quadrant (0-90) formats.
Each comes with a protective leather case, perfect for carrying your Brunton in the field.
Made in the USA in Riverton, Wyoming.
Specifications
MEASUREMENT STYLE: Strike & DipDIMENSIONS (closed): 3.1 x 2.7 x 1.4 in | 8 x 7 x 3.4 cm
WEIGHT: 5.3 oz | 150 g
AZIMUTH: 1˚ graduations w/ ± 0.5˚ accuracy
INTERNAL CLINOMETER: 1˚ graduations w/ ± 0.5˚ accuracy
PERCENT GRADE: 5% graduations
DECLINATION ADJUSTMENT: ± 180˚
Item number: F-5041
UPC: 080078921506
Package weight: 1 lb
