GARMIN GPSMAP 8616 16 in Plotter With US and Canada GN3
This item is brand new
$4,893.95
Request price match
This item ships within 1 day
wi|cw|sw|wi|ln
GHP 10 Marine Autopilot System with GHC 20
GHP 10 Marine Autopilot System with GHC 10
GHP 10V Marine Autopilot System with GHC 10
GHP 10V Marine Autopilot System with GHC 20
GHP 12 Sailboat Autopilot System with GHC 10
GHP 20 Marine Autopilot System for Steer-by-Wire with GHC 10
GHP 20 Marine Autopilot System for Viking with GHC 10
GHP 20 Marine Autopilot System for Yamaha Helm Master with GHC 10
GHP 20 Marine Autopilot System with SmartPump and GHC 10
GHP Reactor Hydraulic Autopilot Corepack
GHP Reactor Mechanical Retrofit Solenoid Corepack
GHP Reactor Hydraulic Corepack with SmartPump
GHP Reactor Steer-by-wire Standard Corepack
GHP Reactor Steer-by-wire Corepack for Yamaha Helm Master
GHP Reactor Steer-by-wire Corepack for Viking VIPER
GHP Reactor Steer-by-wire Corepack for Volvo-Penta
GSD 26 Digital Sonar
GCV 10 SideVu DownVu CHIRP Scanning Sonar
GSD 21 Analog Sonar
GSD 22 Digital Sonar
Ais 300
Ais 600
VHF 300 Black
VHF 300 AIS Black
VHF 100 Silver Grey
VHF 100i International
Vhf 110
VHF 200 Black
VHF 200 Silver Gray
VHF 200i International
VHF 300 Silver Gray
VHF 300i International
VHF 300 AIS Silver Gray
VHF 300i AIS International
Split Connector 50 ft Right Angle RJ45 Plug
Panoptix PS31 Forward Transducer
Panoptix PS60 Thru-hull Down Transducer
Panoptix PS21 LiveVu Forward Transducer
Panoptix PS21-TM Forward Transom Mount Transducer
NMEA 2000 Transducer Adapter Kit
GNT 10 NMEA 2000 - ANT Transceiver
GMR 18 HD Radar
GMR 18 xHD Radar
GMR 24 xHD Radar
GMR 604 xHD Open Array and Pedestal
GMR 606 xHD Open Array and Pedestal
GMR 1204 xHD Open Array and Pedestal
GMR 1206 xHD Open Array and Pedestal
GMR 404/406 Radar Pedestal
GMR 404 Open Array Radar
GMR 406 Open Array Radar
GMR 18 Radar
GMR 24 Radar
GMR 24 HD Radar
GMR 404 xHD Open Array Radar and Pedestal
GMR 406 xHD Open Array Radar and Pedestal
GMR 424 xHD2 Open Array Radar and Pedestal
GMR 624 xHD2 Open Array Radar and Pedestal
GMR 626 xHD2 Open Array Radar and Pedestal
GMR 1224 xHD2 Open Array Radar and Pedestal
GMR 1226 xHD2 Open Array Radar and Pedestal
GBT 10 Bennett Trim Tab Adapter
GC 10 NTSC Marine Camera
GC 10 NTSC Reverse Marine Camera
GWind, GMI 20, DST800 Bundle
GC 10 PAL Marine Camera
GC 10 PAL Reverse Marine Camera
GCL 20 NTSC Low-light Imaging Camera
GCT 20 QVGA 30Hz Thermal Imaging Camera
GCT 30 VGA 9Hz Thermal Imaging Camera
GCL 20 PAL Low-light Imaging Camera
GCT 20 QVGA 9Hz Thermal Imaging Camera
GCT 30 VGA 30Hz Thermal Imaging Camera
Gmi 10
GWS 10 Wind Sensor with GMI 20 Bundle
GWS 10 Wind Sensor with GMI 20 and DST800 Bundle
GWS 10 Wind Sensor with GMI 10 and Smart Triducer Bundle
GWS 10 Wind Sensor
GWS 10 Wind Sensor with GMI 10 Bundle
GWind Wireless Transducer
GWind, GMI 20, DST800 Wireless Bundle
Airmar Smart Triducer, Plastic Thru, NMEA 2000
Access, Smart Transducer, P39 Transom, Temp, NMEA 2000
DT800 12 tilt NMEA2000 Smart Transducer Plastic
Xdcr, Panoptix PS22-TR, LiveVu Fwd/Down
Panoptix LiveScope System GLS 10 and LVS32
Panoptix LiveScope LVS 12
Suggested Maps and Software:
 | Inland Lakes |
 | BlueChart g2, g3 Vision |
 | BlueChart g2, g3 on micro SD card with adapter |
 | Garmin Extras |
 | LakeVu HD Ultra |
 | LakeVu HD |
Contents of the package
- GPSMAP 8616 Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
- Power cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
- Documentation
- Flush mount kit
- Sun cover
- Trim piece snap covers
Features
Garmin GPSMAP8616 16" Plotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Model: 010-02093-50- Features a 16" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
- Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush
- Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia
- ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more
- For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices
- See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
- Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there’s support for optional Garmin Navionics Vision+™ premium map content.
- Compatible with the live sonar PS51 transducer with FrontVü™ forward-looking sonar, which helps you avoid running aground
- SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
- Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge
- Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more.
- Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and cartography cards"

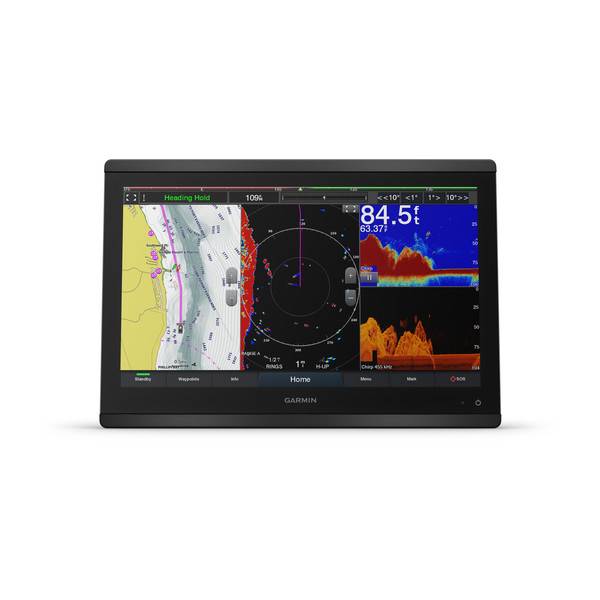

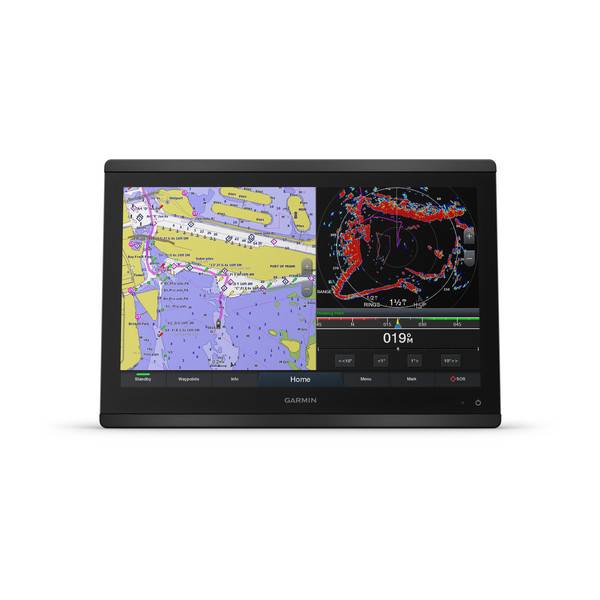

The GPSMAP®8616 chartplotter features a 16" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™coastal charts and inland mapping that feature Auto Guidance+™technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+™premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000®networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™features provide data, displays and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury®engines by using the SmartCraft®Connect gateway.
Specifications
Specifications| General | |
| Physical dimensions | 15.1" x 10.3" x 3" (38.5 cm x 26.3 cm x 7.6 cm) |
| Weight | 9.6 lbs (4.4 kg) |
| Water rating | IPX6 and IPX7 |
| Display type | touchscreen IPS display (anti-glare finish) |
| Display size | 13.6" x 7.7" (34.5 cm x 19.5 cm) |
| Display resolution | FHD; 1920 x 1080 pixels |
| Power consumption | 3.5 A |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Receiver | 10 Hz GPS/GLONASS/Galileo |
| Garmin Marine Network™ ports | 2 |
| Maps & Memory | |
| Accepts data cards | 2 microSD cards (on back) |
| Waypoints | 5,000 |
| Routes | 100 (250 waypoints each) |
| Track log | 50,000 points; 50 saved tracks |
| pre-loaded maps | Garmin Navionics+ coastal and inland water charts for the U.S. and Canada |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Radar compatible | Yes |
| Garmin Sonar compatible | Yes |
| Garmin SmartMode compatible (customizable monitor presets) | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| GSD™ Black Box sonar support | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Garmin Helm compatible | Yes |
| GRID™ (Garmin Remote Input Device) compatible | Yes |
| Wireless remote compatible | Yes |
| Sonar Features & Specifications | |
| Dual-frequency (50/200 kHz) sonar capable | Yes (with external black box, sold separately) |
| Dual-beam (77/200 kHz) sonar capable | Yes (with external black box, sold separately) |
| Frequencies supported | NA |
| Transmit power | NA |
| CHIRP sonar technology | Yes_(when_connected_to_another_compatible_sonar_device) |
| ClearVü | yes (with GCV™ black box, sold separately) |
| SideVü | yes (with GCV™ black box, sold separately) |
| Maximum depth | NA |
| Connections | |
| NMEA 2000® compatible | Yes |
| Transducer pin numbers | na |
| NMEA 0183 input ports | 1 differential |
| NMEA 0183 output ports | 1 differential |
| Video input ports | 1 - BNC composite 1 - HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| Wireless connectivity | Yes |
Item number: 010-02093-50
UPC: 753759285432
Package weight: 14.36 lb
