GARMIN Livescope 2 LVS42HD Transducer
Mounts
Marine Networking
Various
Also available
Contents of the package
LiveScope 2 LVS42HD transducer
Adjustable perspective shaft mount for LiveScope 2 transducers
Trolling motor barrel mount
Power/network cable with adapter
Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
Hardware
Documentation
Adjustable perspective shaft mount for LiveScope 2 transducers
Trolling motor barrel mount
Power/network cable with adapter
Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
Hardware
Documentation
Features
OUR CLEAREST SONAR EVERSee fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.
ULTRA HIGH-DEFINITION IMAGERY WITH BETTER TARGET SEPARATION
NO BLACK BOX NEEDED, SO INSTALL IS EASY
SEE HIGHLY DETAILED IMAGERY AT CASTABLE RANGE AND BOTTOM TRACK OUT TO 125 FEET
SONAR AUTOMATICALLY TURNS OFF WHEN THE TRANSDUCER IS OUT OF THE WATER
WIDER ANGLES IN FORWARD, DOWN AND PERSPECTIVE MODES
OUR CLEAREST SONAR
See fish and lures near the boat in up to 50% more detail and 20% higher resolution with reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 125 feet in freshwater.
NO BLACK BOX
The LiveScope 2 HD transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.
FAST PROCESSING
Enjoy fast processing speeds so you can see fish react in real time and know when to set the hook.
INTEGRATED SENSORS
Water detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.
IMPROVED COVERAGE

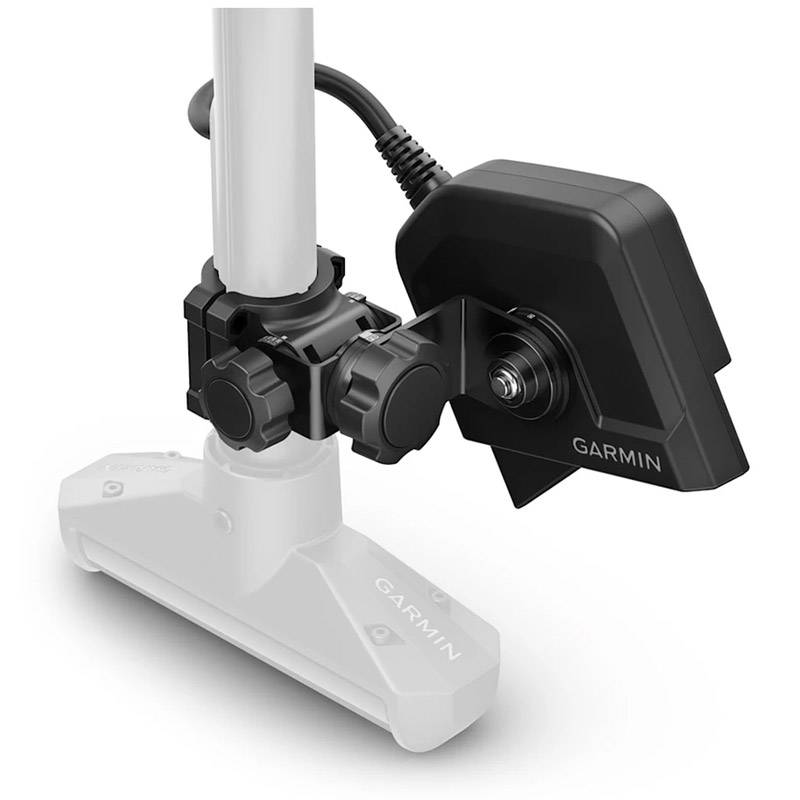

Wider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.
VIVID COLOR PALETTES
When LiveScope 2 HD is paired with your compatible chartplotter, you can choose from more than 15 vivid color options to enhance detail and clarity.
SPY POLE MOUNT

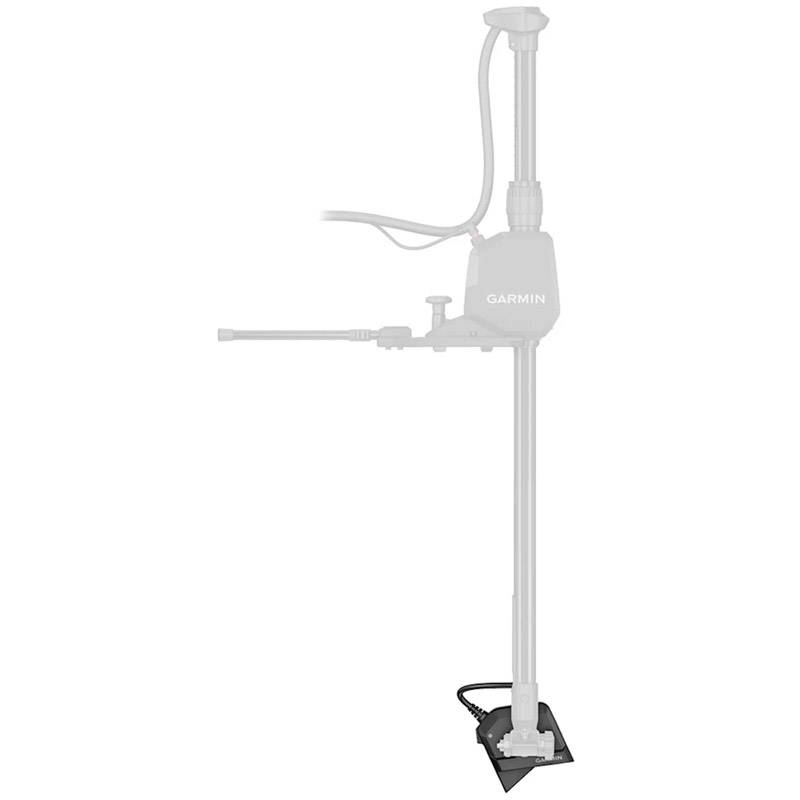

Attach your transducer to your Spy Pole mount to get wireless sonar control independent of your trolling motor.
ONEVÜ SONAR
Combine LiveScope 2 HD with GT360UHD to overlay your live sonar onto the 360-degree image for an all-new 3D view.

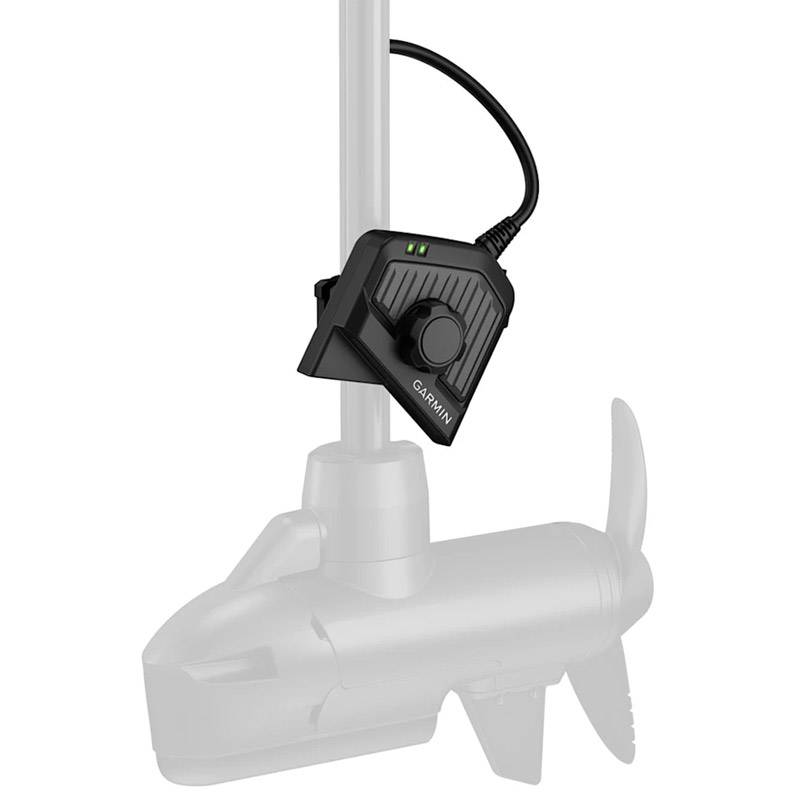

FORWARD MODE
Scout ahead of your boat to see what’s happening in real time with more coverage.
DOWN MODE
Explore a wider live view of the activity directly beneath your boat.

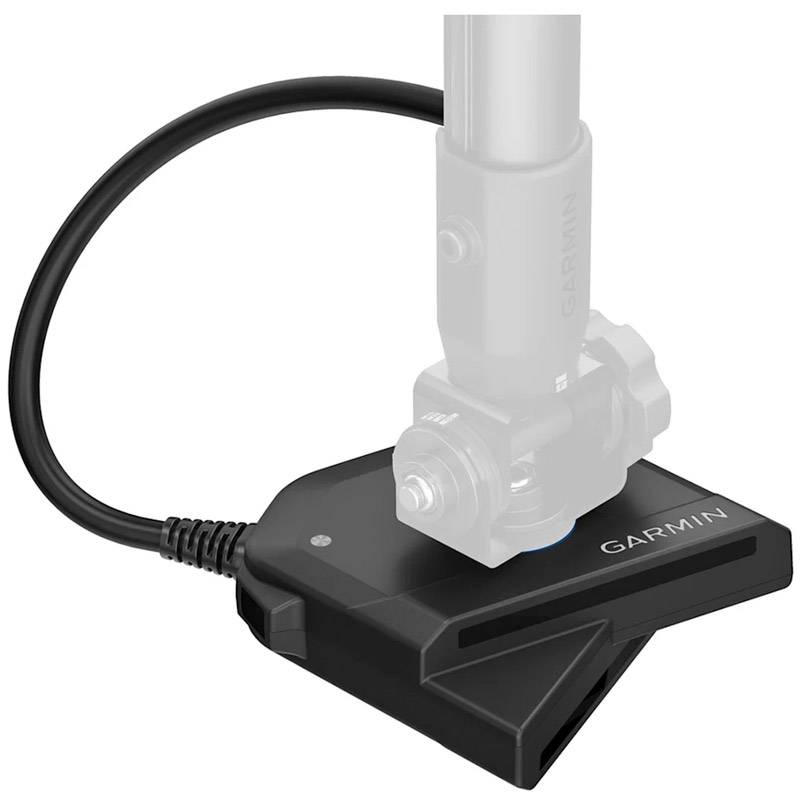

PERSPECTIVE MODE
Get an overhead wider-angle perspective of what’s below and around your boat.
Specifications
GeneralTransducer beamwidth - Forward: 20° x 165°, Down, Perspective: 20° x 180°
Transducer cable length - 5.5 m (18 ft)
Transducer number of pins - 7
Dimension - 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm)
Weight - 3.62 lbs (1.646 kg)
Temperature range - Operating: 0 C to 40 C
Electrical Features
Power input - 10-35 V
Power usage - 32 W max
Fuse - 7.5 A
Compass-safe distance - 4"
Sonar Features
Frequency - 850 kHz-1600 kHz
Transmit power - 521 W
Maximum depth - Down and Forward: 125’
Sonar Type - Live
Target Separation @ 100' - 12.6"
Target separation @ 30' - 3.8"
Perspective Mode Mount Included - yes (adjustable angles)
Water detection transmit control - yes
Networking & Connections
Garmin Marine Network Ports - 1 BlueNet (small connector) with GMN1 Adapter
Power connection - yes (2-wire)
Item number: 010-03899-00
UPC: 753759369101
Package weight: 6.60 lb
